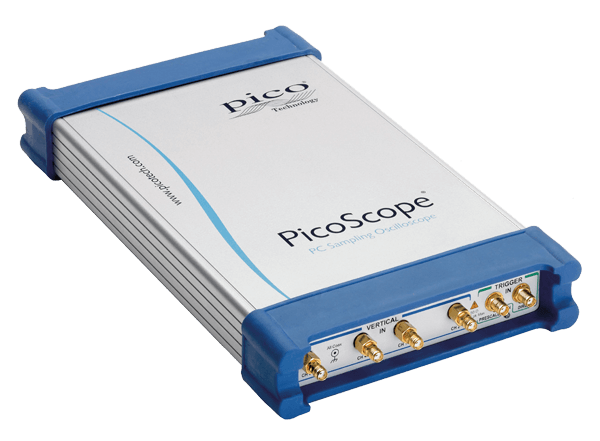

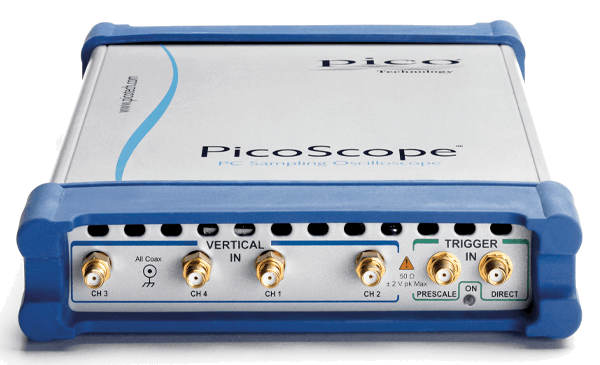

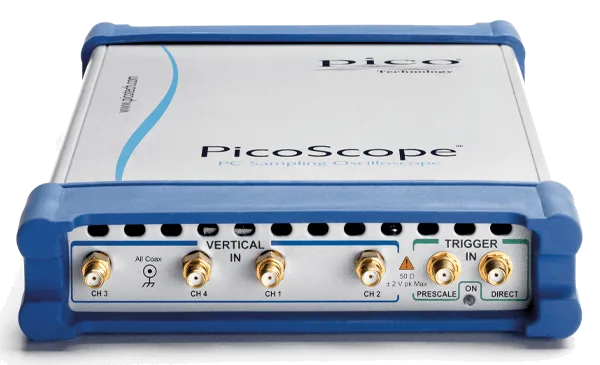

PicoScope 9300 Series — Sampling Oscilloscopes to 30 GHz
USB sampling oscilloscope family for high-speed repetitive signals, telecom, microwave, optical and TDR/TDT measurements. The range includes 20 GHz and 30 GHz electrical models, 9.5 GHz optical input option, 11.3 Gb/s clock recovery option and integrated differential TDR/TDT options.
| Model | Electrical BW | Channels | Key configuration |
|---|---|---|---|
| PicoScope 9301-20 | 20 GHz | 2 | General sampling scope |
| PicoScope 9301-30 | 30 GHz | 2 | Higher-bandwidth sampling scope |
| PicoScope 9302-20 | 20 GHz | 2 | Clock recovery option |
| PicoScope 9311-20 | 20 GHz + 9.5 GHz optical | 2 | Electro-optical input |
| PicoScope 9321-20 | 20 GHz | 2 | Integrated TDR/TDT |
| PicoScope 9341-20 | 20 GHz | 4 | Four-channel sampling |
| PicoScope 9341-30 | 30 GHz | 4 | Four-channel high-bandwidth sampling |
Key Features
30 GHz Sampling Bandwidth
Designed for eye diagrams, mask tests, timing, microwave and telecom waveform work on repetitive high-speed signals.
15 TS/s Sequential Sampling
64 fs equivalent timing supports detailed edge, jitter, phase and timing measurements.
Optical Input Option
The 9311 family adds 9.5 GHz optical measurement capability for optical eye diagrams and transceiver validation.
Clock Recovery Option
Selected models support 11.3 Gb/s clock recovery for stable eye diagram and serial-data measurements.
Integrated TDR/TDT Options
Selected models include differential deskewable TDR/TDT step sources for cables, connectors, backplanes and PCB interconnects.

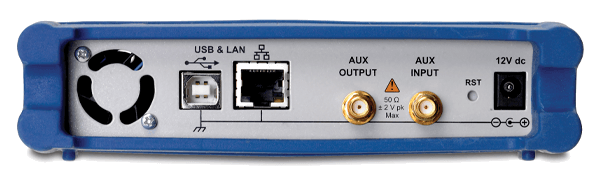

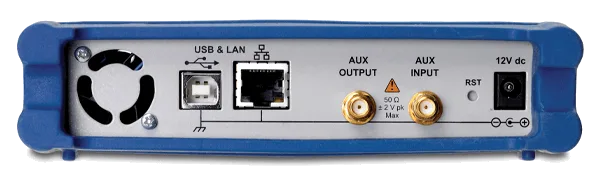

Compact USB Instrument
PC-connected format keeps the sampling head close to the DUT and reduces long high-frequency cable runs.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| SAMPLING OSCILLOSCOPE | ||
| Electrical bandwidth | GHz | 20 or 30, model-dependent |
| Optical bandwidth | GHz | 9.5 on optical-input model |
| Sequential sampling | TS/s | 15, 64 fs timing step |
| Display resolution | TS/s | Up to 640, 1.5 fs displayed step |
| ADC / dynamic range | — | 16-bit, 1 MS/s ADC and 60 dB dynamic range |
| TRIGGER / ANALYSIS | ||
| Trigger | — | Up to 15 GHz prescaled, 2.5 GHz direct trigger |
| Clock recovery | Gb/s | Optional 11.3 |
| Eye / mask testing | — | Up to 20 Gb/s with pattern lock |
| TDR/TDT | — | Integrated differential deskewable step source on selected models |
| CONTROL | ||
| Connection | — | USB PC-connected instrument |
| Use case | — | Telecom, optical, radar, microwave, serial data and timing analysis |
Applications
Eye Diagram and Mask Test
Electrical and optical eye diagram measurements for serial links, transceivers and telecom devices.
Optical Transceiver Test
Use the optical model for laser, fiber and optical module validation without an external O/E converter.
TDR/TDT Analysis
Characterize cables, connectors, backplanes and PCB traces using TDR/TDT model options.
RF and Microwave Timing
Measure high-frequency repetitive signals, radar-related timing and phase behaviour.
Serial Link Screening
Perform pre-compliance eye and mask measurements for high-speed interfaces.
Precision Timing
Use equivalent-time sampling for timing research and GHz waveform reconstruction.
