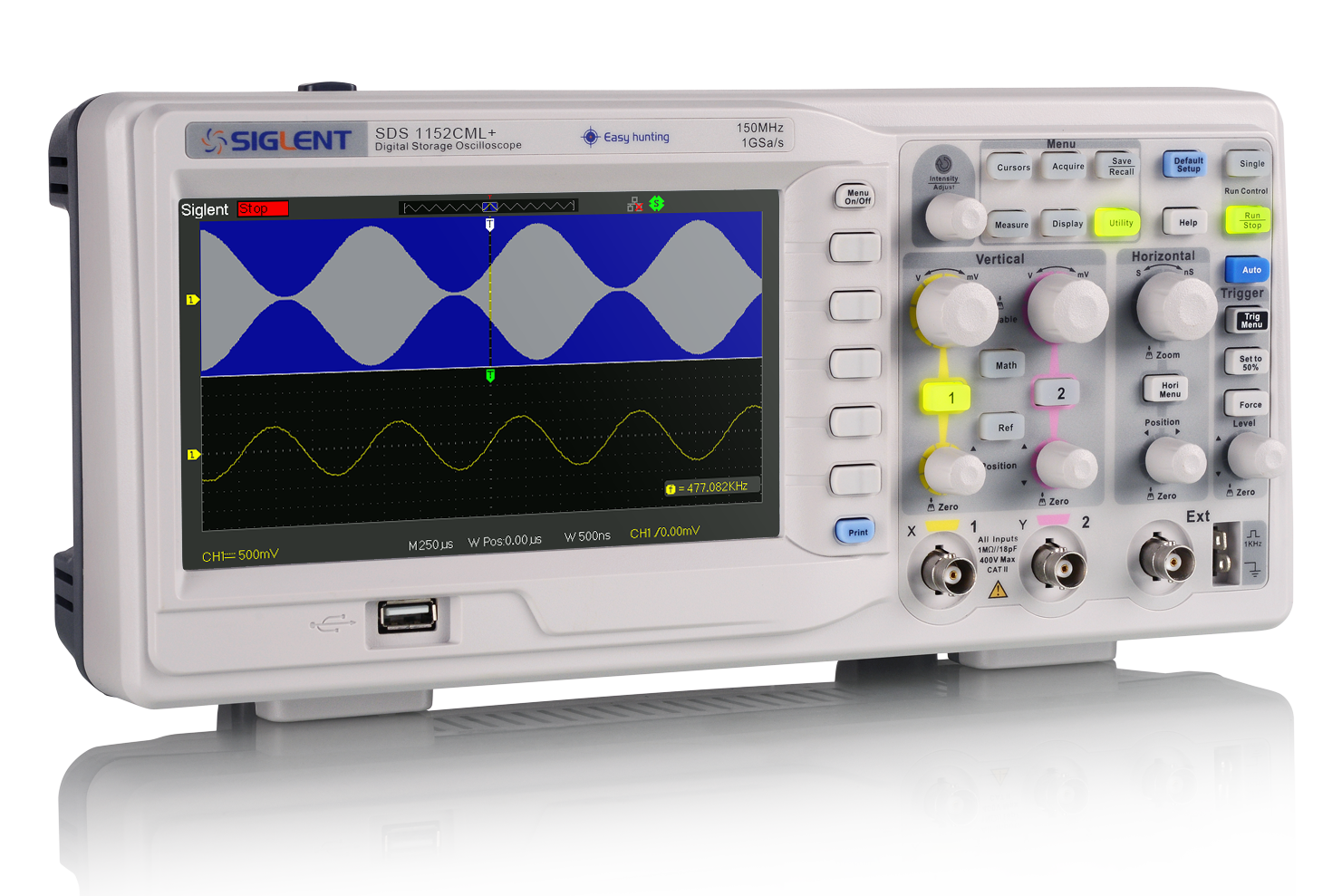

SDS1000CML+ — 2-channel Entry Oscilloscopes, 100 / 150 MHz
Cost-effective dual-channel digital oscilloscopes for education, service benches and basic production test. The SDS1000CML+ platform offers 1 GSa/s real-time sampling, 50 GSa/s equivalent-time sampling, up to 2 Mpts memory, 32 automatic measurements, waveform math, pass/fail testing and USB/LAN connectivity.
| Model | Bandwidth | Channels | Sample Rate | Memory Depth | Status |
|---|---|---|---|---|---|
| SDS1102CML+ | 100 MHz | 2 + EXT | 1 GSa/s real-time · 50 GSa/s ETS | 2 Mpts | Current / quoteable |
| SDS1152CML+ | 150 MHz | 2 + EXT | 1 GSa/s real-time · 50 GSa/s ETS | 2 Mpts | Discontinued · check availability |
Key Features
Dual-channel Entry Oscilloscope
Two analog channels plus external trigger suit education labs, service benches, production repair desks and basic R&D waveform checks.
1 GSa/s Real-time · 50 GSa/s Equivalent-time
The platform provides up to 1 GSa/s real-time sampling and up to 50 GSa/s equivalent-time sampling for repetitive signal inspection.

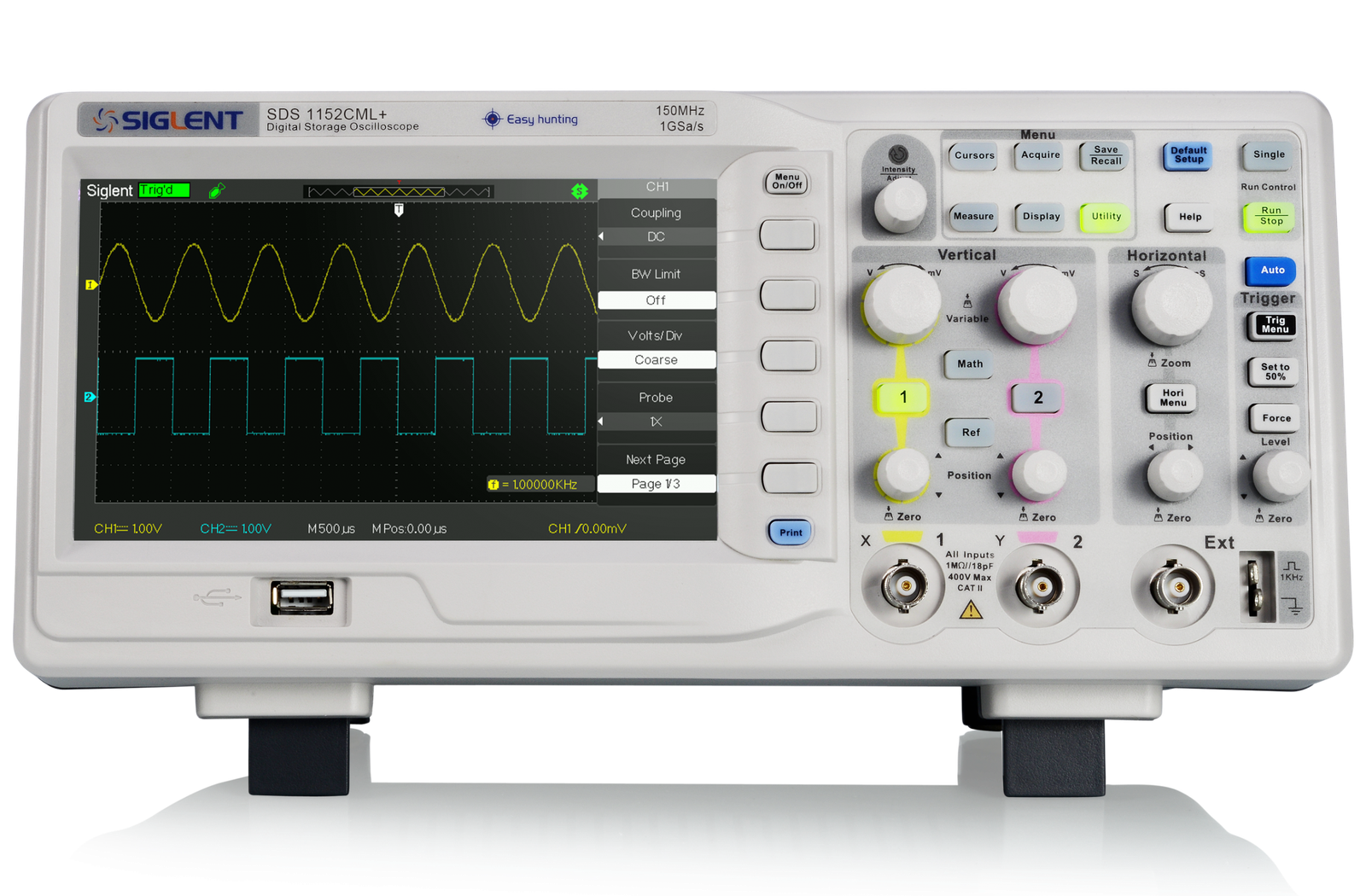

Up to 2 Mpts Long Memory
2 Mpts memory helps capture longer waveform events than the normal 40 kpts view, improving timing and event review.

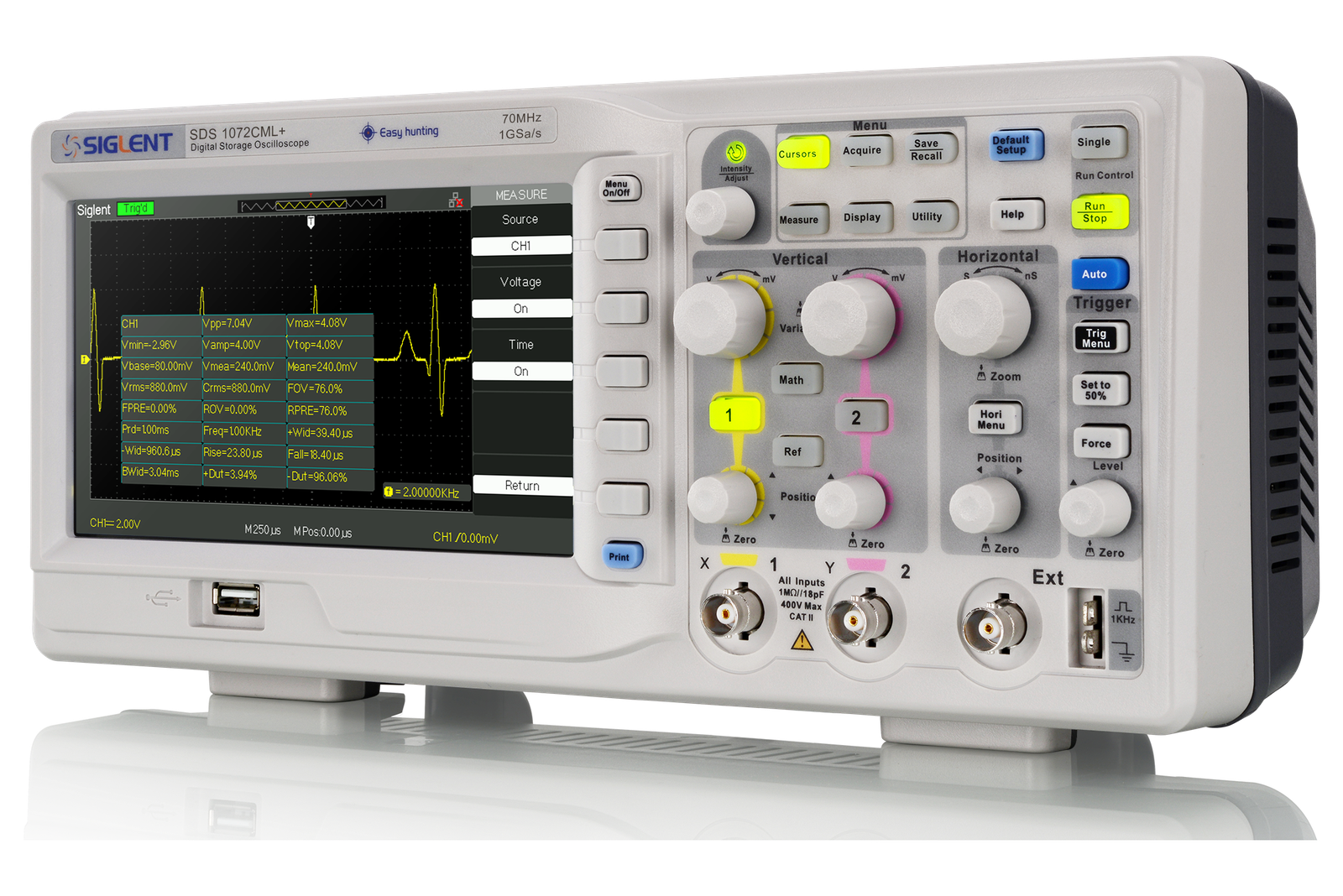

7-inch 800 × 480 Display
The 7-inch TFT-LCD screen gives enough space for waveform, measurements and menu operation in a compact bench instrument.
32 Automatic Measurements
Voltage, time and delay measurement groups provide 32 automatic parameters, with five selected measurements displayed on screen.
Math, FFT and Zoom
Basic math operations, FFT and zoom help inspect waveform details and frequency content without external analysis tools.
Pass/Fail and Waveform Recorder
Mask-based pass/fail testing and digital recorder functions support long-term monitoring and simple production waveform checks.

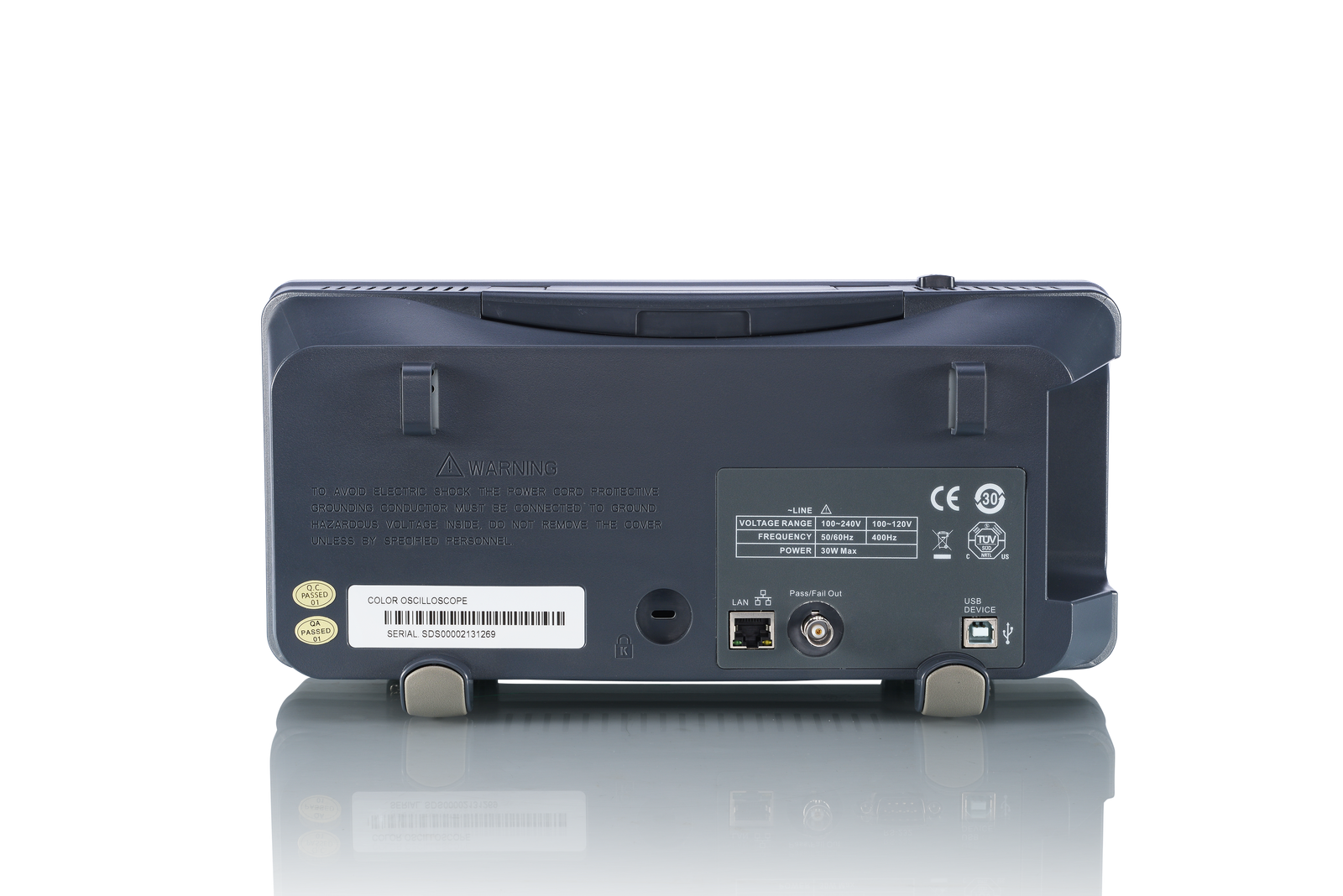

USB, LAN and Pass/Fail Interfaces
USB Host, USB Device/USBTMC, LAN/VXI-11 and Pass/Fail output support data transfer and remote bench workflows.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| VERTICAL | ||
| Bandwidth | MHz | 100 / 150 model-dependent |
| Analog channels | — | 2 + EXT |
| Display | — | 7-inch TFT-LCD · 800 × 480 |
| HORIZONTAL | ||
| Real-time sample rate | GSa/s | Up to 1 |
| Equivalent-time sample rate | GSa/s | Up to 50 |
| Memory depth | Mpts | Up to 2 |
| Normal memory view | Kpts | 40 |
| TRIGGER | ||
| Trigger types | — | Edge · Pulse · Video · Slope · Alternate |
| MEASUREMENT / ANALYSIS | ||
| Automatic measurements | — | 32 parameters · five displayed on screen |
| Math functions | — | + · − · × · ÷ · FFT |
| Frequency counter | digits | 6 |
| Waveform tools | — | Zoom · digital filter · waveform recorder · pass/fail mask |
| CONNECTIVITY | ||
| Interfaces | — | USB Host · USB Device/USBTMC · LAN/VXI-11 · Pass/Fail |
Applications
Basic Electronics and Instrumentation Labs
A cost-effective dual-channel oscilloscope for waveform fundamentals, timing, frequency, math and FFT demonstrations.
Repair and Maintenance Checks
Useful for general waveform verification, power-supply checks, clock inspection and field service troubleshooting.
Simple Pass/Fail Waveform QA
Mask-based pass/fail testing and Pass/Fail output can support basic production and incoming-inspection checks.
MCU and Digital Board Bring-up
Suitable for clock, reset, PWM, UART-level waveform checks and general embedded hardware validation.
Low-frequency Power Supply Debug
Useful for ripple, start-up waveform, control signal and basic converter timing observation within the bandwidth range.
Budget Measurement Platform
A practical option where low cost, dual-channel capture and simple remote/data interfaces matter more than advanced analysis.
