SDS3000X HD — 12-bit Oscilloscopes, 350 MHz to 1 GHz
SIGLENT SDS3000X HD oscilloscopes are 12-bit, 4-channel mixed-signal platforms available in 350 MHz, 500 MHz and 1 GHz bandwidths. They provide up to 4 GSa/s sampling, up to 400 Mpts/ch record length, up to 890,000 wfm/s in Sequence mode, low-noise acquisition, serial trigger/decode, Bode plot and power analysis options.
| Model | Bandwidth | Channels | Sample Rate | Memory Depth | Capture Rate |
|---|---|---|---|---|---|
| SDS3034X HD | 350 MHz | 4 + EXT · 16 digital MSO option | 4 GSa/s | 400 Mpts/ch | 200k normal · 890k sequence |
| SDS3054X HD | 500 MHz | 4 + EXT · 16 digital MSO option | 4 GSa/s | 400 Mpts/ch | 200k normal · 890k sequence |
| SDS3104X HD | 1 GHz | 4 + EXT · 16 digital MSO option | 4 GSa/s | 400 Mpts/ch | 200k normal · 890k sequence |
Key Features
12-bit ADC · Low-noise Acquisition
12-bit acquisition provides 4,096 vertical levels, with high-resolution ERES mode available for cleaner waveform detail. SIGLENT specifies noise floor as low as 125 µVrms at 1 GHz full bandwidth.
Up to 4 GSa/s and 400 Mpts/ch
The series supports up to 4 GSa/s sample rate and up to 400 Mpts/ch record length, suitable for embedded debug, power-event capture and long waveform analysis.
SPO Capture and Sequence Mode
SPO technology provides up to 200,000 wfm/s in Normal mode and up to 890,000 wfm/s in Sequence mode. Sequence and History support up to 80,000 segments or frames.

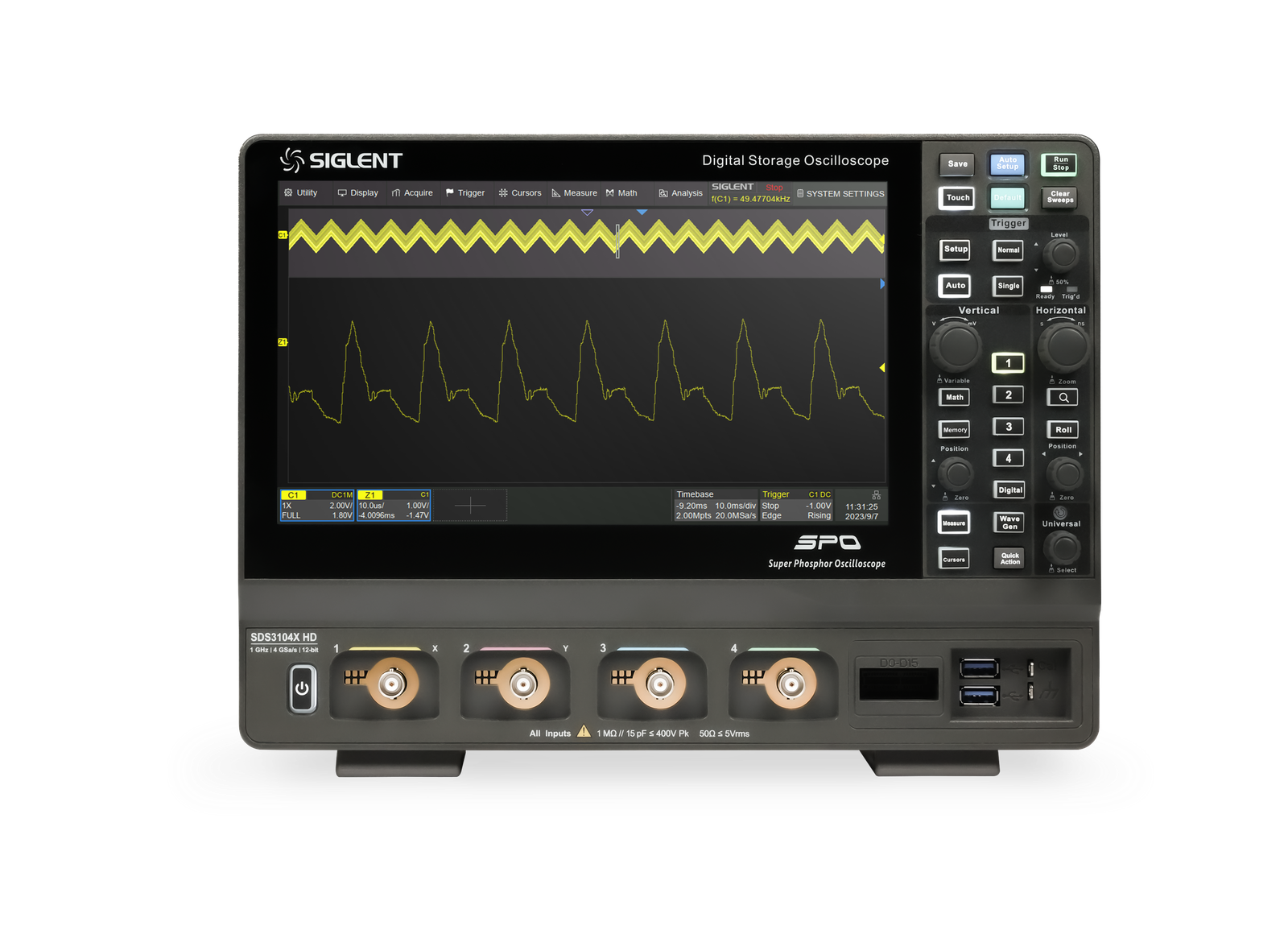

Serial Trigger and Decode
Supported protocols include I²C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I²S, MIL-STD-1553B, SENT, Manchester and ARINC429 for embedded and automotive debugging.
Bode Plot and Power Analysis
Analysis functions include Bode plot, power analysis, mask test, Search/Navigate, waveform histogram, counter and digital voltmeter. Quote power analysis with the required probes and deskew setup.
50 MHz External Waveform Generator Support
The SDS3000X HD can work with SIGLENT's external 50 MHz waveform generator module for stimulus, response and frequency-sweep measurements.

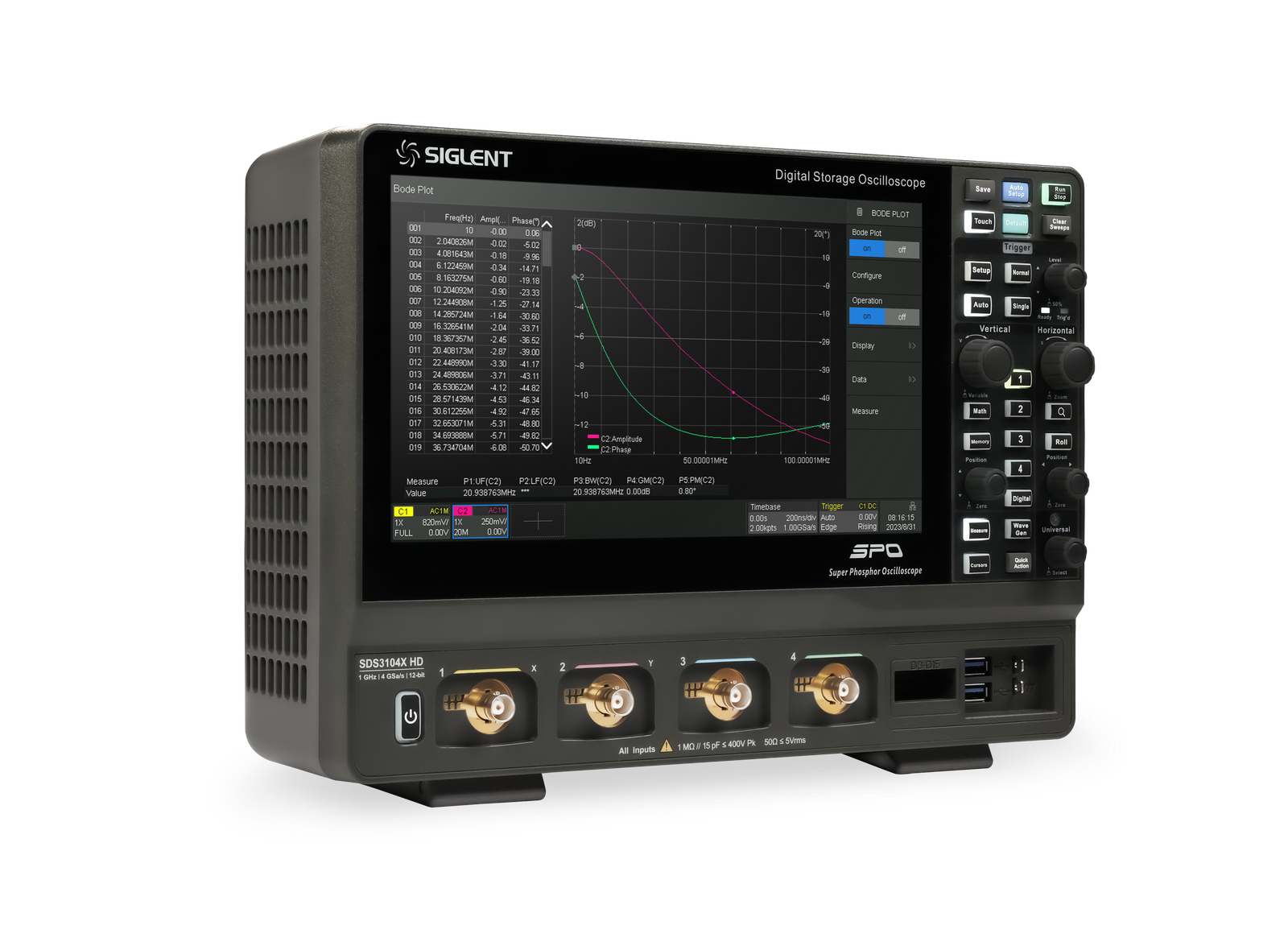

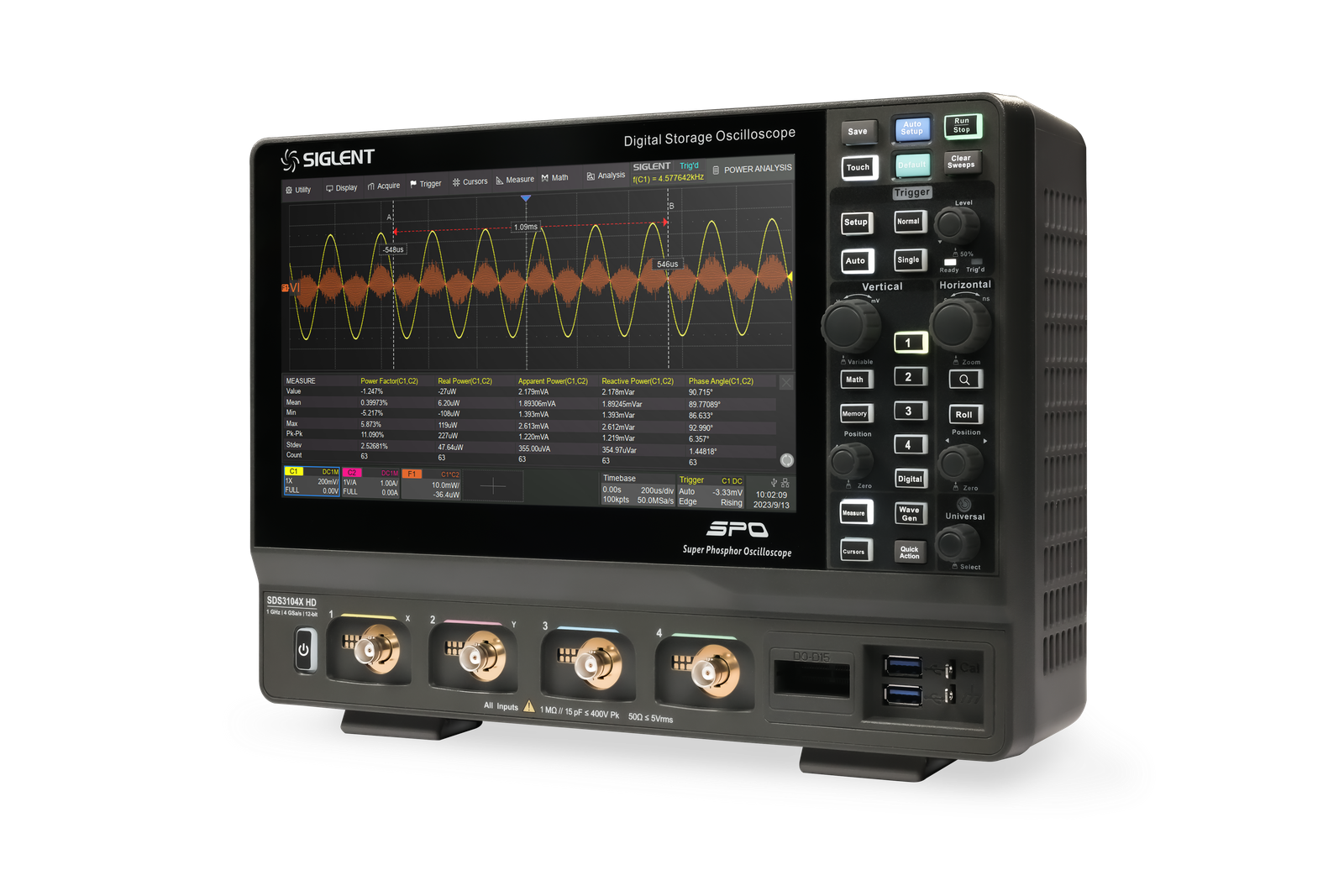

10.1-inch Touch Display
The 10.1-inch capacitive touch display supports multi-touch gestures, 256-level intensity grading and colour-temperature display mode for easier signal interpretation.
Remote Control and Automation
USB, LAN, built-in web server and SCPI support make the series suitable for laboratory automation, remote operation and production-style waveform checks.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| VERTICAL | ||
| ADC resolution | bit | 12 · up to 16 in ERES mode |
| Bandwidth | MHz | 350 / 500 / 1,000 model-dependent |
| Analog channels | — | 4 + EXT |
| Digital channels | — | 16 with MSO option |
| Noise floor | µVrms | As low as 125 at 1 GHz full bandwidth |
| HORIZONTAL | ||
| Sample rate | GSa/s | Up to 4 |
| Record length | Mpts/ch | Up to 400 |
| Waveform capture rate | wfm/s | 200,000 normal mode · 890,000 sequence mode |
| Sequence / History | frames | Up to 80,000 segments / frames |
| TRIGGER AND DECODE | ||
| Trigger types | — | Edge · Slope · Pulse · Window · Runt · Interval · Dropout · Pattern · Qualified · Nth Edge · Setup/Hold · Delay · Video/HDTV · Zone · Serial bus |
| Serial decode | — | I²C · SPI · UART · CAN · LIN · CAN FD · FlexRay · I²S · MIL-STD-1553B · SENT · Manchester · ARINC429 |
| ANALYSIS | ||
| Power analysis | — | Power quality · harmonics · inrush current · transient response · switching loss · SOA |
| Bode plot | — | Loop response and frequency-response measurements with suitable stimulus configuration |
| Math and measurements | — | 50+ measurements · statistics · histogram · track · trend · gating · FFT · formula editor |
| External waveform generator | MHz | 50 MHz module support |
| DISPLAY | ||
| Screen | — | 10.1-inch capacitive touch · 1024 × 600 |
| Display modes | — | 256-level intensity grading · colour temperature |
| CONNECTIVITY | ||

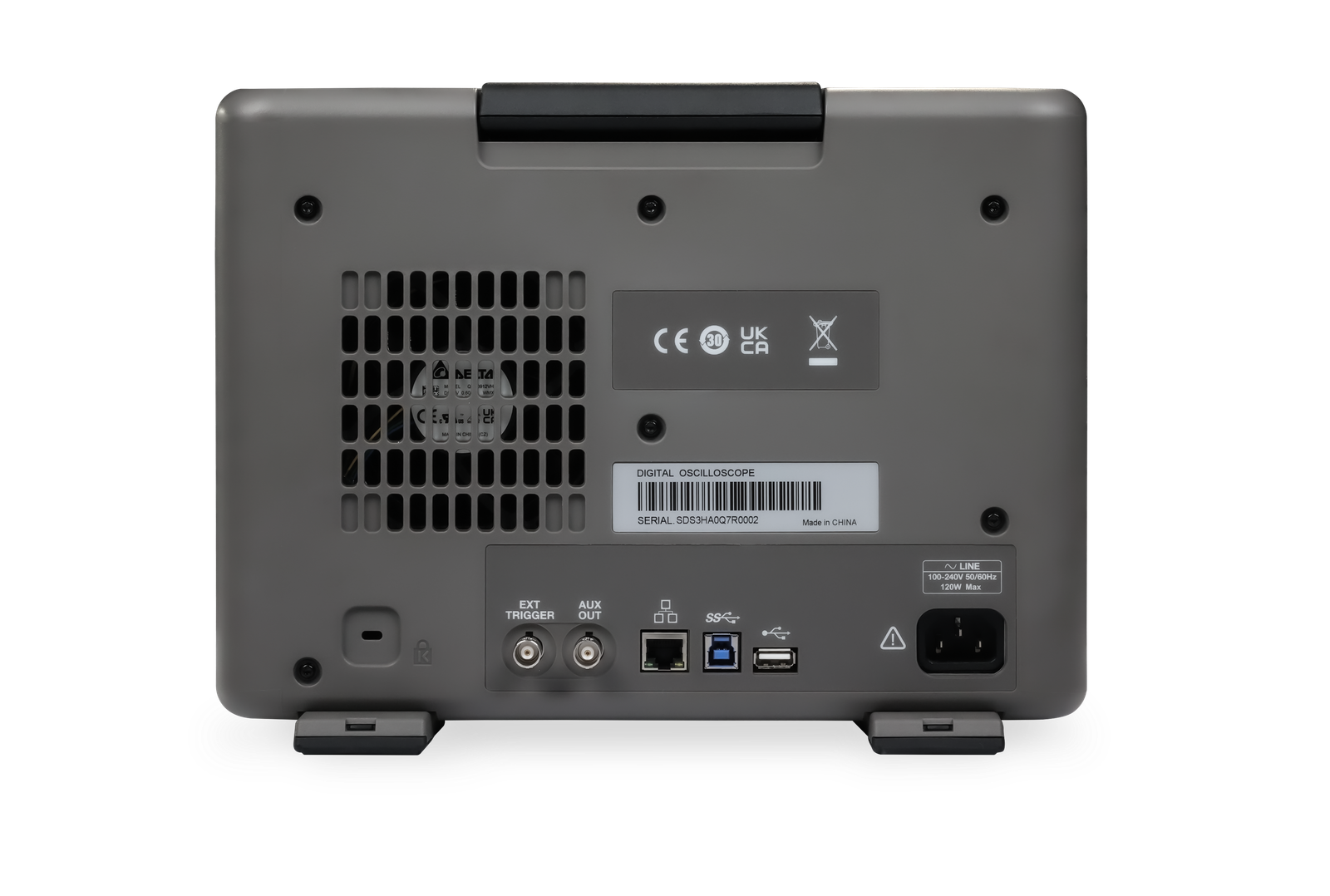

| Interfaces | — | 2× USB 3.0 Host · 1× USB 2.0 Host · USB 3.0 Device · 1000M LAN · external trigger in · aux out |
| Remote control | — | Built-in web server · SCPI · external mouse and keyboard support |
Applications
Embedded System Debug
Serial trigger/decode, long memory and mixed-signal options support firmware-hardware correlation across common digital buses.
Power Stage Validation
Bode plot and power-analysis functions support loop-response, power quality, transient response and switching-loss measurements.
CAN / LIN / CAN FD Development
CAN, LIN, CAN FD, FlexRay, SENT and other decode capabilities support ECU and vehicle-network debugging.
Automated Waveform QA
Mask testing, pass/fail output, SCPI and LAN control make the series usable in validation and production test frameworks.
1 GHz High-resolution Debug
12-bit acquisition and up to 1 GHz bandwidth support edge-quality, ringing, timing and low-noise waveform checks.
Advanced University Lab
A practical HD platform for embedded systems, power electronics, mixed-signal and measurement training laboratories.
