SDS5000L — 8-channel Low-profile Oscilloscopes, 350 MHz to 1 GHz
SIGLENT SDS5000L is an 8-channel low-profile oscilloscope platform for rack, remote and high-channel-count systems. It offers 350 MHz, 500 MHz and 1 GHz models, 12-bit acquisition, up to 5 GSa/s sample rate, up to 2.5 Gpts/ch memory and up to 650,000 wfm/s in Sequence mode. SYN64 synchronization scales multiple modules up to 512 channels while LAN, web control and SCPI support automated test use.
| Model | Bandwidth | Channels | Sample Rate | Memory Depth | Capture Rate | Positioning |
|---|---|---|---|---|---|---|
| SDS5038L | 350 MHz | 8 + EXT | Up to 5 GSa/s | Up to 2.5 Gpts/ch | 160k normal · 650k sequence | High-channel-count rack acquisition |
| SDS5058L | 500 MHz | 8 + EXT | Up to 5 GSa/s | Up to 2.5 Gpts/ch | 160k normal · 650k sequence | Power, embedded and validation test |
| SDS5108L | 1 GHz | 8 + EXT | Up to 5 GSa/s | Up to 2.5 Gpts/ch | 160k normal · 650k sequence | Fast edges, WBG and multi-channel SI |
Key Features

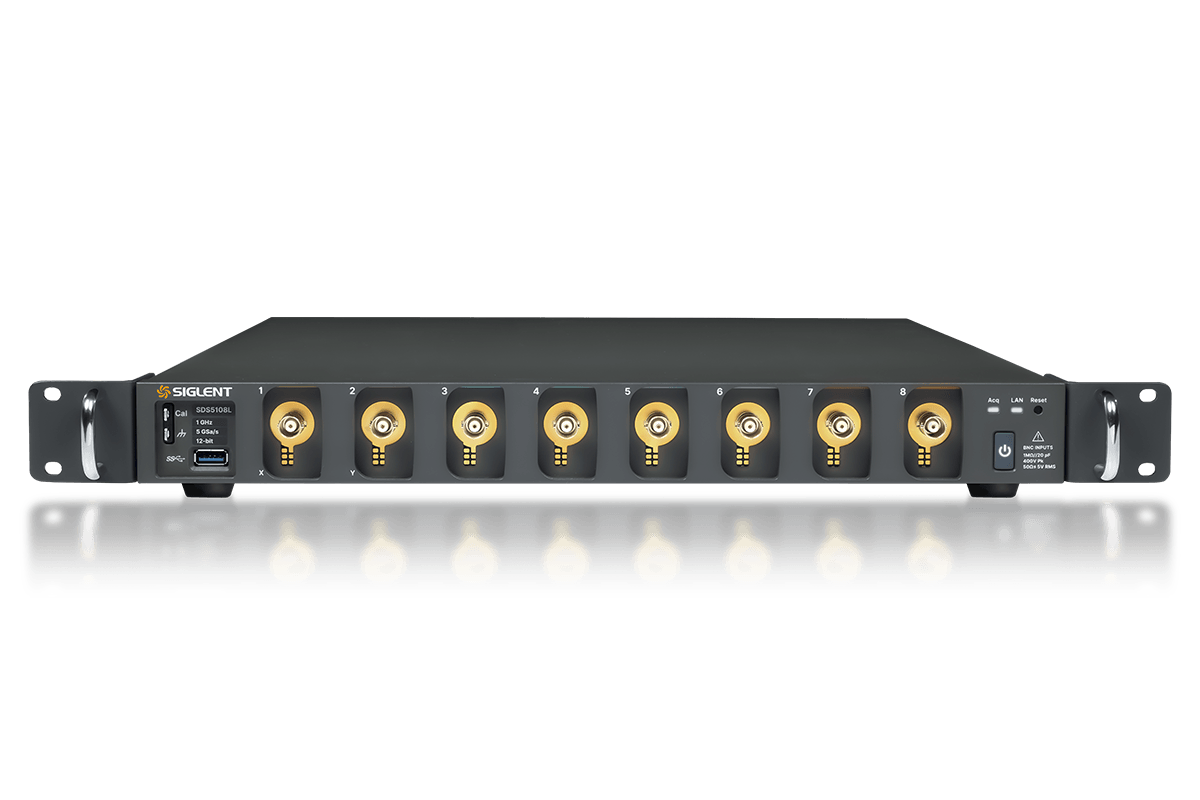

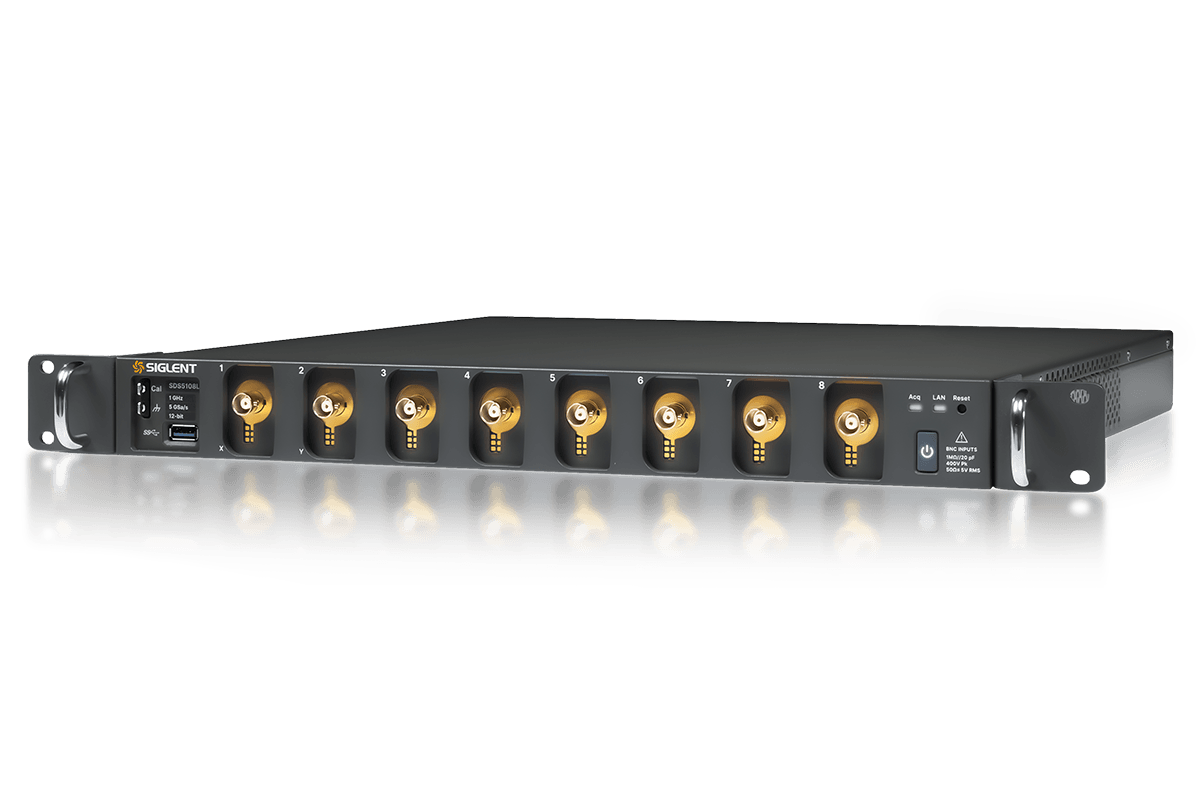

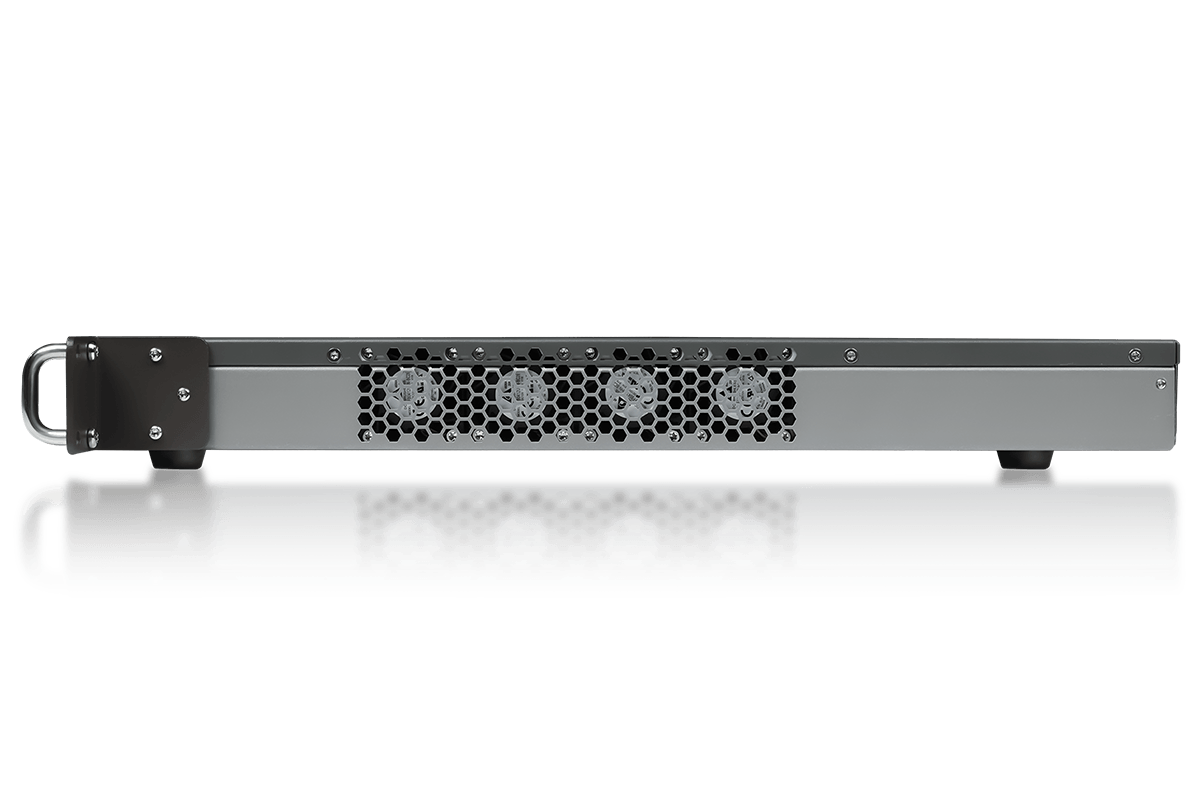

8-channel Low-profile Acquisition

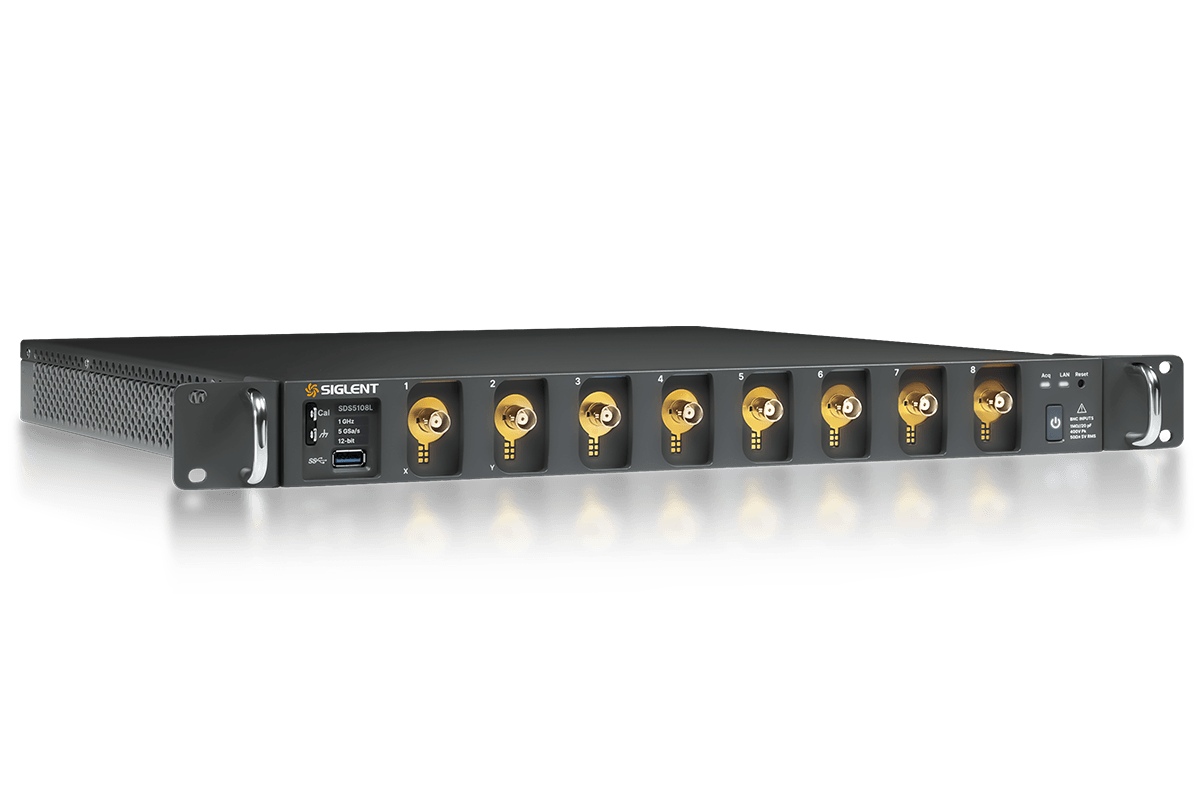

Eight analog channels plus external trigger support simultaneous power rails, motor phases, control signals and embedded buses in one rack-friendly 1U module.
12-bit ADC · Up to 5 GSa/s
The platform combines 12-bit vertical resolution with up to 1 GHz bandwidth and up to 5 GSa/s sample rate for timing, ripple and fast-edge measurements.
Deep Memory and Fast Capture
Up to 2.5 Gpts/ch memory supports long event capture. SPO technology provides up to 160,000 wfm/s in normal mode and up to 650,000 wfm/s in Sequence mode.
SYN64 Synchronization up to 512 Channels
Multiple SDS5000L modules can be synchronized with the SYN64 distributor to build high-channel-count acquisition systems up to 512 channels.

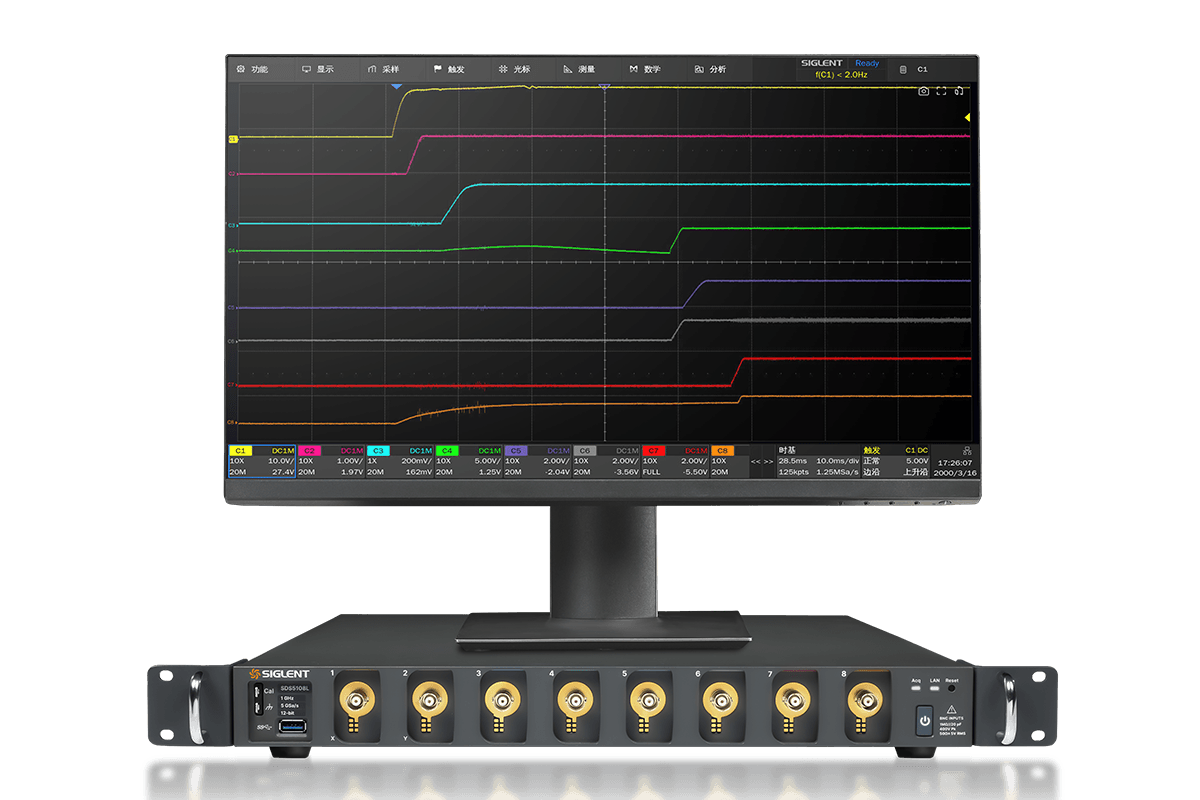

Remote and Rack Operation
The module has no integrated display and is intended for rack, remote or external-display operation. LAN web control, SCPI, HDMI, mouse and keyboard support simplify system integration.
Serial Trigger and Decode
Trigger/decode support includes I²C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I²S, MIL-STD-1553B, SENT, Manchester and ARINC429.
Power Analysis, Bode Plot and Double Pulse Test
Analysis functions support power-up sequence work, loop response, power electronics, WBG semiconductor switching and double-pulse test workflows when configured with the required options.
Automation-ready Connectivity
1000M LAN, USB host/device, 10 MHz input/output, external trigger, auxiliary output and SCPI control make the series suitable for validation and production ATE systems.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| VERTICAL | ||
| ADC resolution | bit | 12 |
| Bandwidth | MHz / GHz | 350 MHz / 500 MHz / 1 GHz model-dependent |
| Analog channels | — | 8 + external trigger |
| Integrated display | — | No integrated display; external display / mouse / web control supported |
| Digital MSO channels | — | Not integrated on SDS5000L low-profile module |
| Low noise floor | µVrms | Typical 140 µVrms @ 1 GHz bandwidth |
| HORIZONTAL | ||
| Sample rate | GSa/s | Up to 5 |
| Memory depth | Gpts/ch | Up to 2.5 |
| Waveform capture rate | wfm/s | Up to 160,000 normal mode · up to 650,000 Sequence mode |
| Sequence / History | frames | Up to 170,000 segments / frames |
| SYNCHRONIZATION | ||
| SYN64 system expansion | channels | Synchronize up to 64 SDS5000L modules for systems scalable up to 512 channels |
| Reference clock | — | 10 MHz input and 10 MHz output for system synchronization |
| TRIGGER AND DECODE | ||
| Trigger types | — | Edge · Slope · Pulse · Window · Runt · Interval · Dropout · Pattern · Qualified · Nth Edge · Setup/hold · Delay · Video/HDTV · Zone · Serial bus |
| Serial decode | — | I²C · SPI · UART · CAN · LIN · CAN FD · FlexRay · I²S · MIL-STD-1553B · SENT · Manchester · ARINC429 |
| ANALYSIS | ||
| Measurements | — | 60+ automatic measurements with statistics, histogram, track, trend and gating |
| Math and FFT | — | 8 math traces, 8 Mpts FFT, filter and formula editor |
| Advanced functions | — | Search, Navigate, DVM, counter, waveform histogram, Bode plot, power analysis and double pulse test |
| External waveform generator | MHz | External 50 MHz waveform generator supported |
| CONNECTIVITY | ||

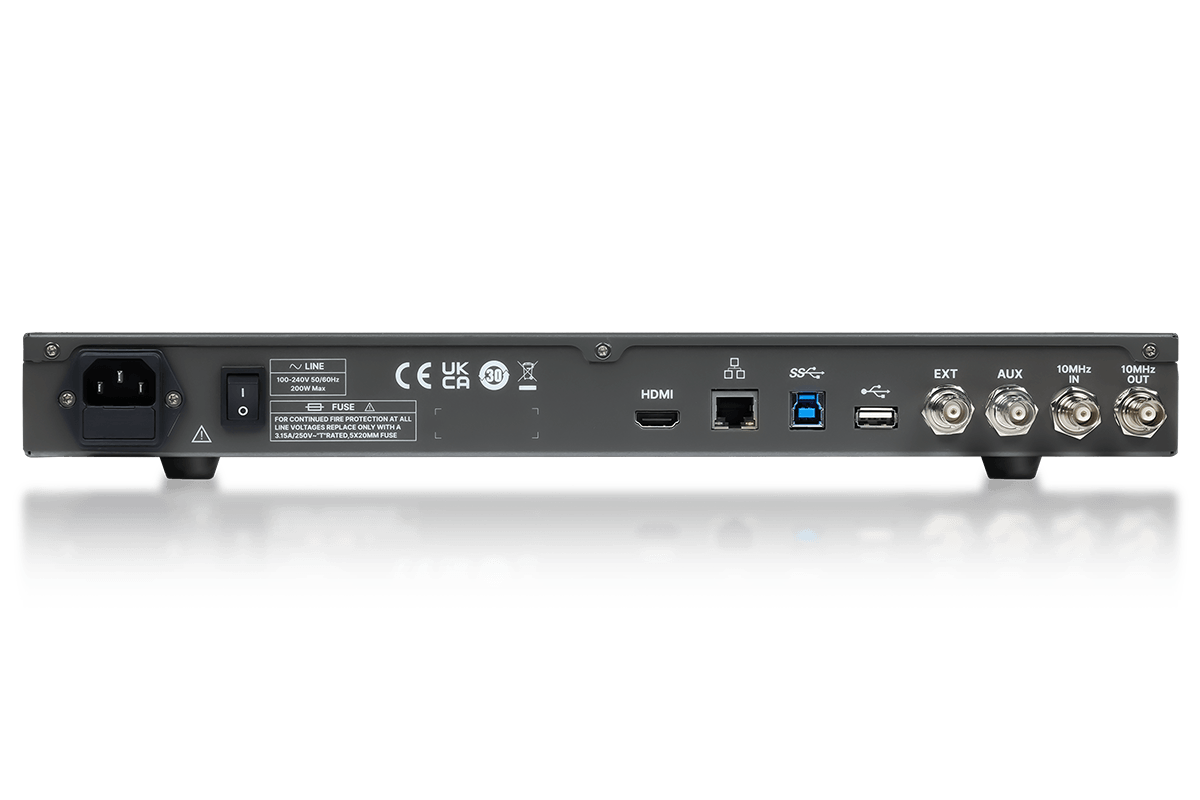

| Interfaces | — | USB Host 3.0 · USB 2.0 Host · USB 3.0 Device/USBTMC · 1000M LAN · HDMI · External Trigger In · Aux Out · 10 MHz In/Out |
| Remote control | — | Built-in web server · SCPI · external mouse and keyboard support |
Applications
Power-up Sequence Analysis
Capture multiple power rails and control lines in one acquisition to verify timing order, startup delays and rail dependencies.
Three-phase Power and Motor Drives
Use 8 channels to observe three-phase voltage/current, gate drive, DC bus and control signals for inverter and motor-drive validation.
GaN / SiC Switching Tests
High channel count, fast sampling and power-analysis functions support overshoot, ringing, transient and double-pulse measurements.
High-channel-count Acquisition
SYN64 synchronization enables rack systems for multi-unit acquisition, automated validation and dense signal monitoring.
Embedded and Automotive Debug
Serial decode and long memory support MCU, FPGA, ECU and vehicle-network debugging across analog and protocol signals.
ATE and Remote Test Systems
LAN, SCPI, web control and 1000M Ethernet make the series suitable for production test, remote labs and centralized validation benches.
