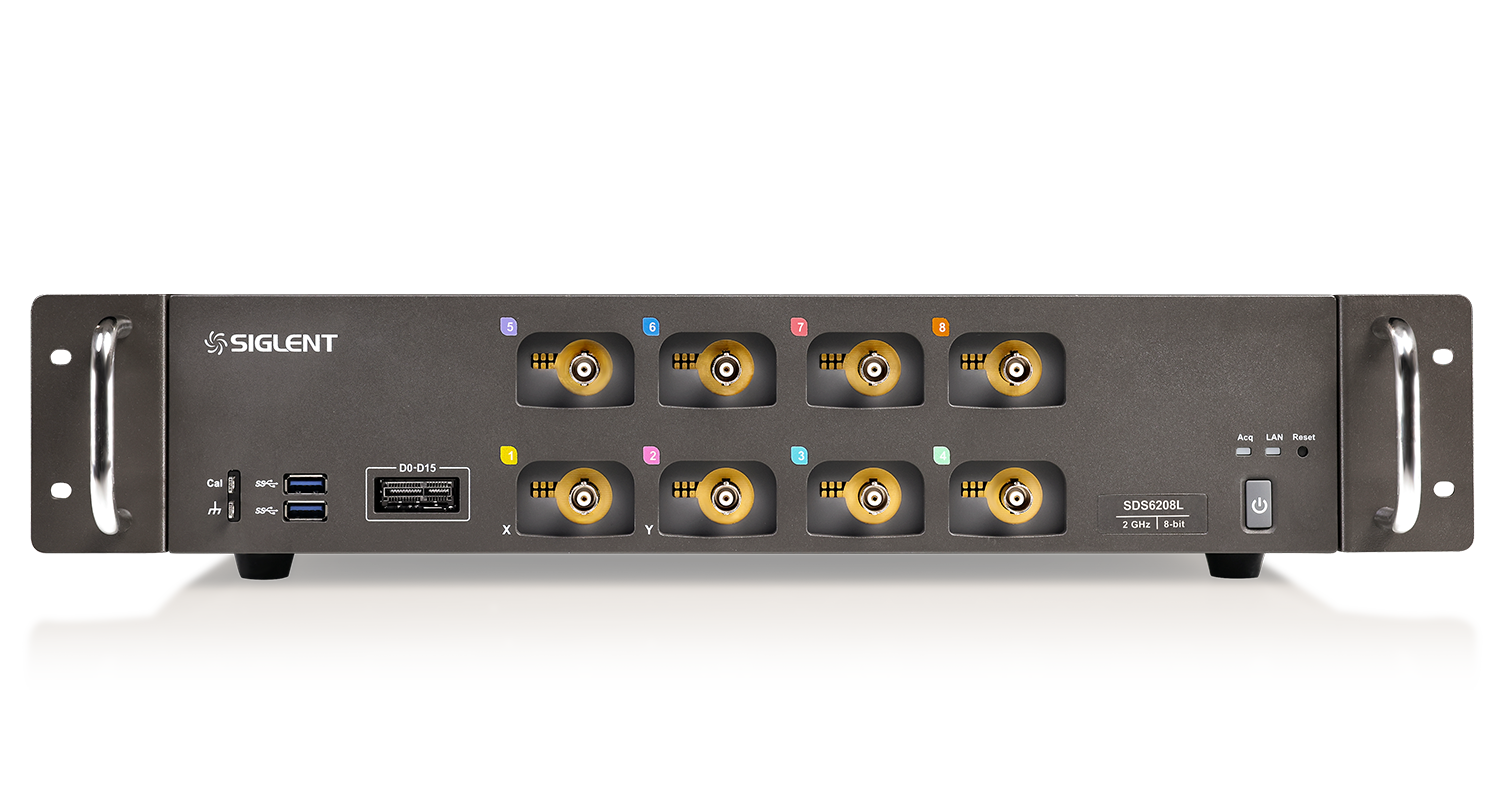

SDS6000L — Low-profile 4/8-channel Oscilloscopes, 500 MHz to 2 GHz
SIGLENT SDS6000L low-profile oscilloscopes provide 4 or 8 analog channels in compact 1U/2U chassis formats. The series covers 500 MHz, 1 GHz and 2 GHz bandwidths, 5 GSa/s per channel, 10 GSa/s ESR, up to 500 Mpts/ch record length and up to 750,000 wfm/s in Sequence mode.
| Model | Bandwidth | Analog Channels | Sample Rate | Memory Depth | Use Fit |
|---|---|---|---|---|---|
| SDS6054L | 500 MHz | 4 + EXT | 5 GSa/s/ch · 10 GSa/s ESR | 500 Mpts/ch single · 250 Mpts dual · 125 Mpts 3–4 ch | Compact 1U validation |
| SDS6058L | 500 MHz | 8 + EXT | 5 GSa/s/ch · 10 GSa/s ESR | 500 Mpts/ch single · 250 Mpts dual · 125 Mpts 3–4 ch | 8-channel acquisition |
| SDS6104L | 1 GHz | 4 + EXT | 5 GSa/s/ch · 10 GSa/s ESR | 500 Mpts/ch single · 250 Mpts dual · 125 Mpts 3–4 ch | 1U high-speed debug |
| SDS6108L | 1 GHz | 8 + EXT | 5 GSa/s/ch · 10 GSa/s ESR | 500 Mpts/ch single · 250 Mpts dual · 125 Mpts 3–4 ch | Multi-channel test |
| SDS6204L | 2 GHz | 4 + EXT | 5 GSa/s/ch · 10 GSa/s ESR | 500 Mpts/ch single · 250 Mpts dual · 125 Mpts 3–4 ch | 2 GHz 1U platform |
| SDS6208L | 2 GHz | 8 + EXT | 5 GSa/s/ch · 10 GSa/s ESR | 500 Mpts/ch single · 250 Mpts dual · 125 Mpts 3–4 ch | Maximum channel density |
Key Features

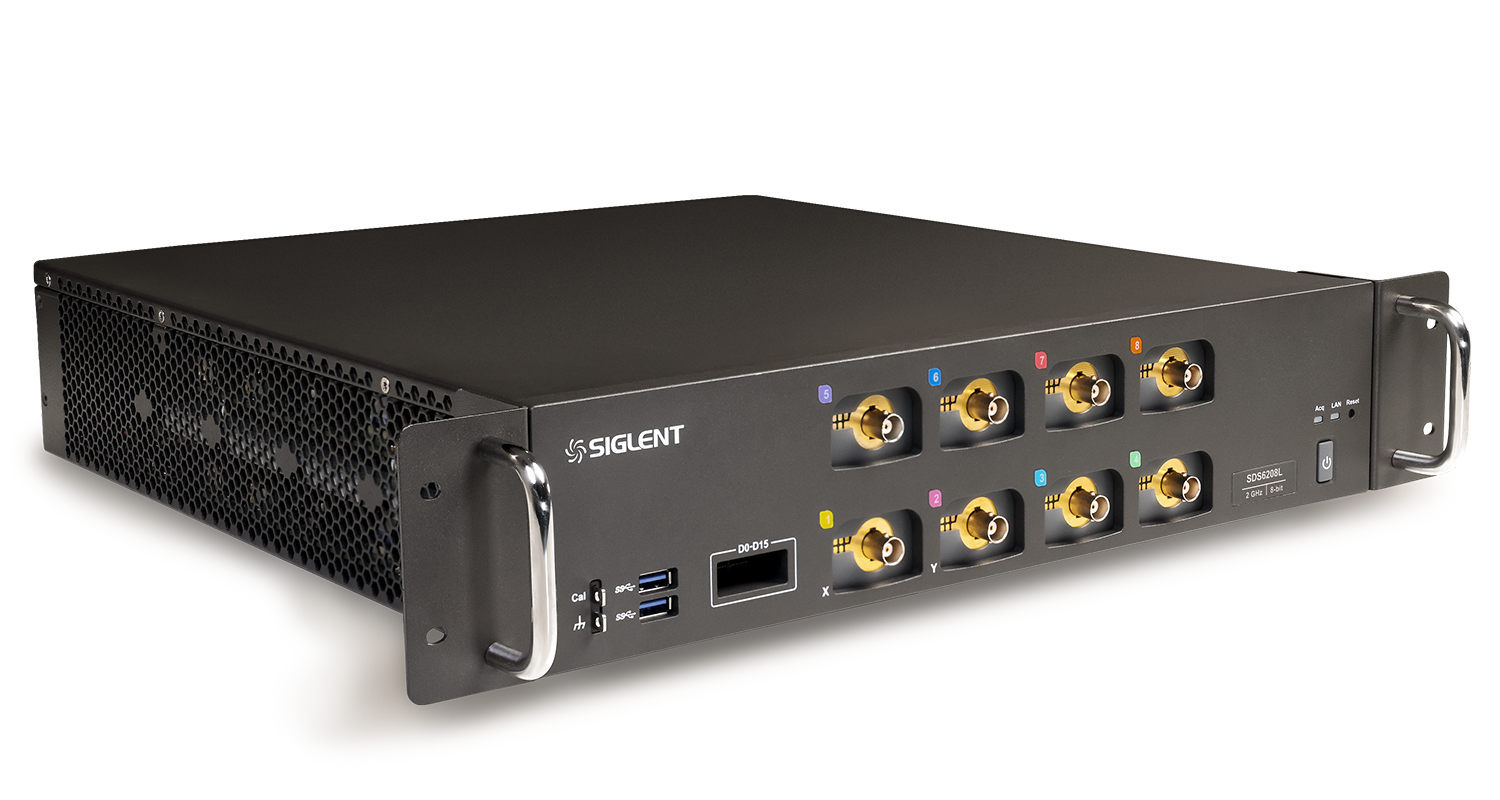

4 or 8 Analog Channels in Low-profile Chassis
The SDS6000L family is available as 4-channel and 8-channel models. The 4-channel units are compact 1U instruments, while 8-channel models provide higher channel density in a 2U format.
500 MHz to 2 GHz Bandwidth
Choose 500 MHz, 1 GHz or 2 GHz bandwidth depending on edge speed, channel count and validation requirement. This avoids overstating every model as an 8-channel 2 GHz instrument.
5 GSa/s Per Channel · 10 GSa/s ESR
The series provides 5 GSa/s real-time sampling per channel, with 10 GSa/s equivalent sample rate for repetitive signals.
Deep Memory and Sequence Capture
Record length reaches up to 500 Mpts/ch in single-channel use. Sequence mode supports up to 80,000 segments and up to 750,000 wfm/s for rare-event capture.

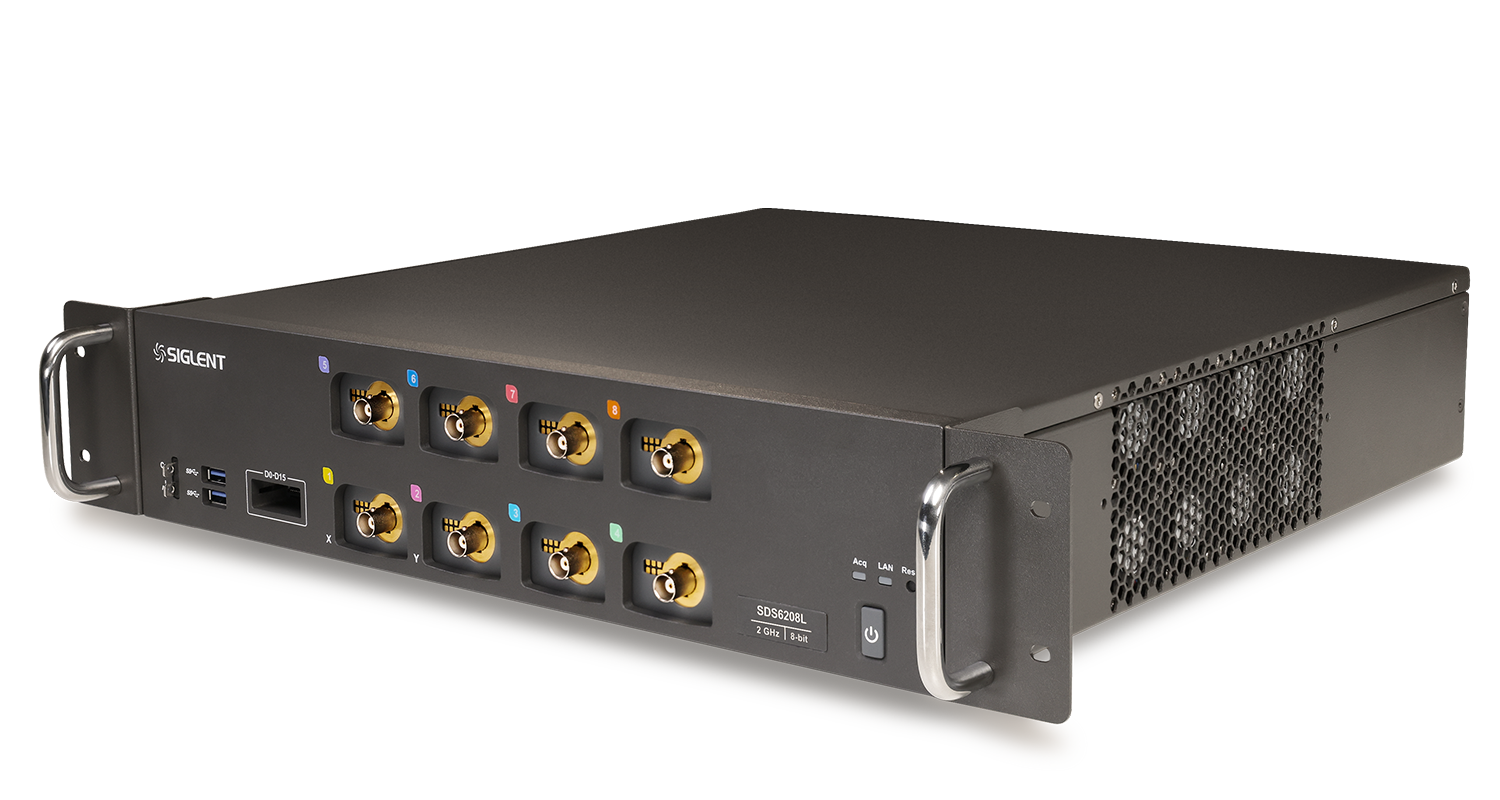

SYN64 Multi-unit Synchronization
Multiple SDS6000L modules can be synchronized with the SYN64 distributor to build acquisition systems up to 512 channels.
Serial Trigger and Decode
Supported buses include I²C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I²S, MIL-STD-1553B, SENT and Manchester.
Analysis and Stimulus Options
Analysis functions include mask test, power analysis, eye/jitter analysis, search, navigate, math, histogram, digital voltmeter and counter. A 25 MHz AWG option is available.
Remote and ATE-ready Operation
The instrument can operate with external display and mouse, or remotely over 1000M LAN using web control and SCPI commands.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| ACQUISITION | ||
| Bandwidth | MHz / GHz | 500 MHz / 1 GHz / 2 GHz, model-dependent |
| Analog channels | — | 4 + EXT or 8 + EXT, model-dependent |
| Digital channels | — | 16 digital channels with MSO option |
| Sample rate | GSa/s | 5 per channel · 10 ESR |
| Record length | Mpts/ch | 500 single-channel · 250 dual-channel · 125 with 3 or 4 channels |
| Waveform capture rate | wfm/s | 170,000 normal mode · 750,000 Sequence mode |
| Sequence / History | frames | Up to 80,000 segments / frames |
| TRIGGER AND DECODE | ||
| Trigger types | — | Edge · Slope · Pulse · Window · Runt · Interval · Dropout · Pattern · Qualified · Nth Edge · Setup/Hold · Delay · Video/HDTV · Zone · Serial bus |
| Serial decode | — | I²C · SPI · UART · CAN · LIN · CAN FD · FlexRay · I²S · MIL-STD-1553B · SENT · Manchester |
| ANALYSIS / OPTIONS | ||
| Analysis tools | — | Search · Navigate · Mask Test · Power Analysis · Eye/Jitter · DVM · Counter · Histogram |
| AWG | MHz | 25 MHz function / arbitrary waveform generator option |
| Synchronization | — | SYN64 supports synchronized systems up to 512 channels |
| CONNECTIVITY | ||
| Standalone use | — | External display and mouse supported |

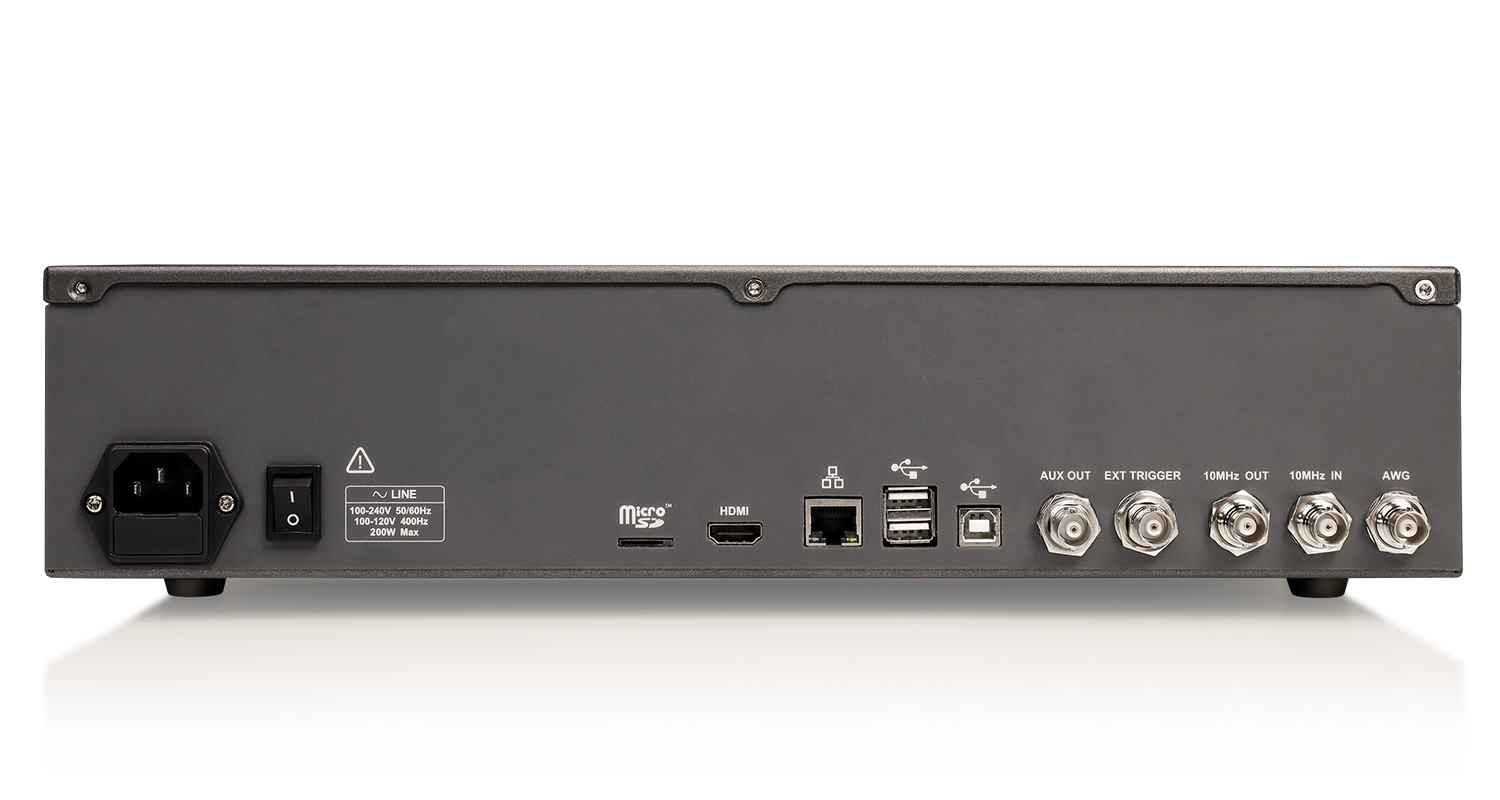

| Interfaces | — | USB Host · USB Device/USBTMC · 1000M LAN · microSD · Pass/Fail · Trigger Out · HDMI · 10 MHz In/Out |
| Remote control | — | Built-in web server · SCPI · external mouse and keyboard support |
Applications
High-channel-count Acquisition
4/8-channel modules and SYN64 synchronization make the series suitable for scalable, rack-friendly waveform acquisition.
ATE and Validation Systems
1000M LAN, SCPI, web control, pass/fail output and low-profile packaging support automated validation benches.
Embedded System Debug
Serial decode, long memory, MSO option and search/navigation tools help correlate firmware and hardware behaviour.
CAN / LIN / CAN FD Development
CAN, LIN, CAN FD, FlexRay, SENT and Manchester decode support ECU and vehicle-network debugging.
Power Stage and Loop Validation
Power analysis, Bode plot support, deep memory and optional AWG help evaluate switching behaviour and control-loop response.
Multi-lane Signal Debug
Up to 2 GHz bandwidth, eye/jitter analysis and 8-channel capture support timing, skew and edge-quality investigations.
