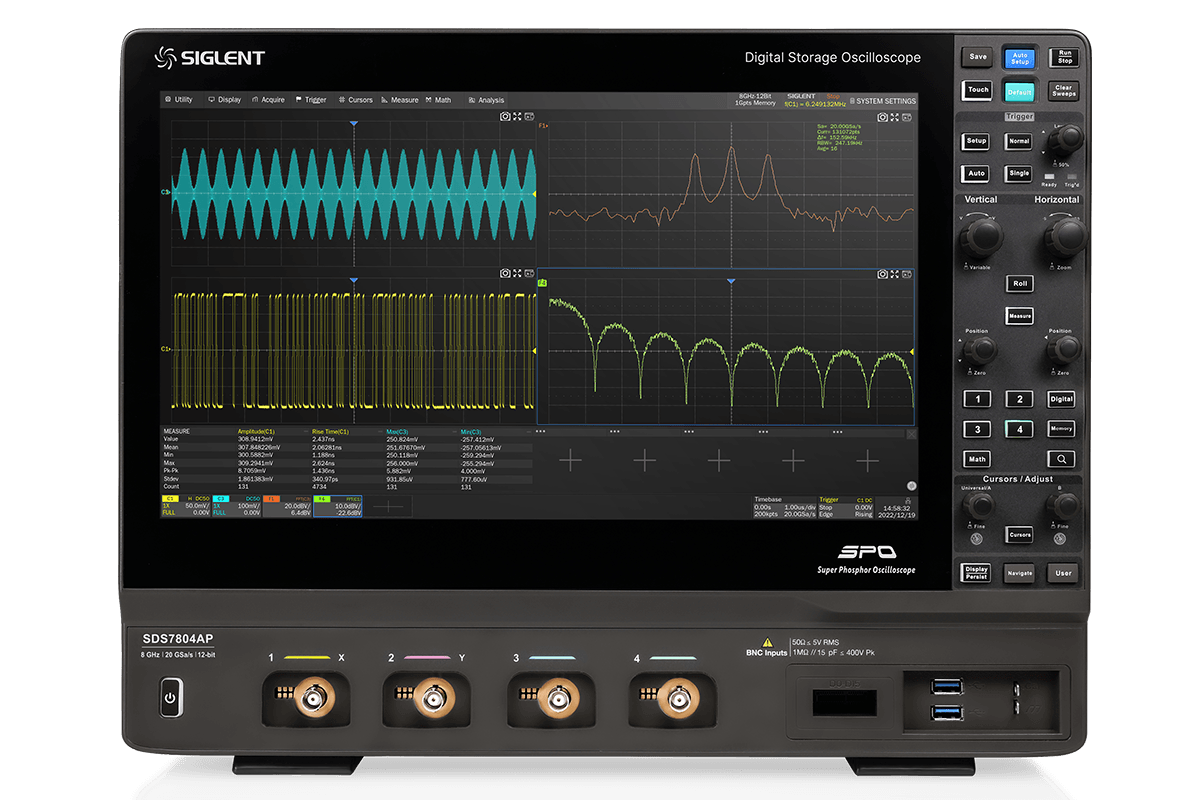

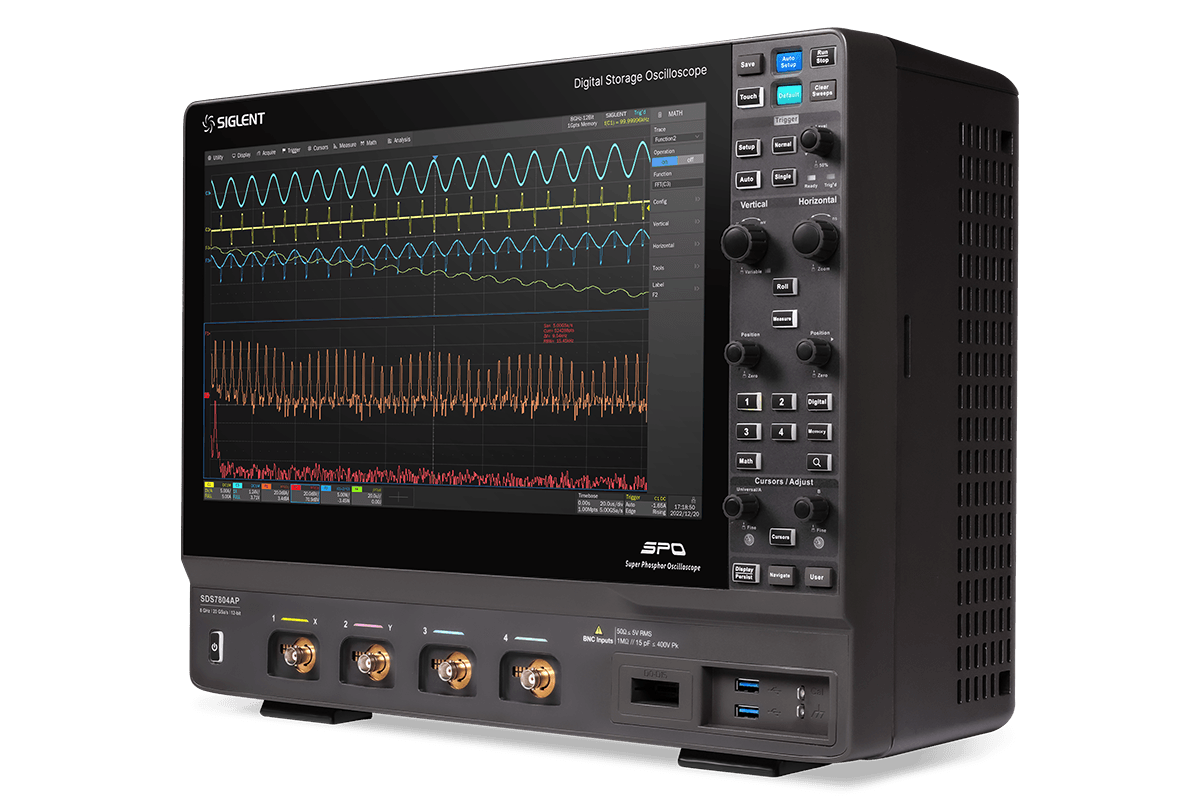

SDS7000A / AP — Flagship Oscilloscopes, 3 GHz to 8 GHz
SIGLENT SDS7000A/AP is a 3–8 GHz flagship oscilloscope platform with 12-bit ADC, up to 20 GSa/s, up to 2 Gpts/ch memory, 1,000,000 wfm/s capture rate and a 15.6-inch HD touch display. It supports high-speed debug, eye/jitter analysis, serial decode, compliance options, Bode plot/power analysis and optional RTSA-DDC-SigVSA for A models.
| Model | Bandwidth | Sample Rate | Memory Depth | ADC | Key Differentiator |
|---|---|---|---|---|---|
| SDS7304A H12 | 3 GHz | 20 GSa/s (2-ch) · 10 GSa/s (3–4 ch) | 500 Mpts/ch (opt. 1 Gpts/ch) | 12-bit / 16-bit ERES | Entry flagship · eye/jitter |
| SDS7404A H12 | 4 GHz | 20 GSa/s (2-ch) · 10 GSa/s (3–4 ch) | 500 Mpts/ch (opt. 1 Gpts/ch) | 12-bit / 16-bit ERES | USB 2.0 · Ethernet compliance options |
| SDS7604A H12 | 6 GHz | 20 GSa/s (2-ch) · 10 GSa/s (3–4 ch) | 500 Mpts/ch (opt. 1 Gpts/ch) | 12-bit / 16-bit ERES | MIPI-DPHY · DDR2/3 compliance options |
| SDS7804A H12 | 8 GHz | 20 GSa/s (2-ch) · 10 GSa/s (3–4 ch) | 500 Mpts/ch (opt. 1 Gpts/ch) | 12-bit / 16-bit ERES | Highest A-model bandwidth |
| SDS7604AP | 6 GHz | 20 GSa/s (all channels) | 1 Gpts/ch (opt. 2 Gpts/ch) | 12-bit / 16-bit ERES | Full sample rate on all 4 ch · compliance options |
| SDS7804AP | 8 GHz | 20 GSa/s (all channels) | 1 Gpts/ch (opt. 2 Gpts/ch) | 12-bit / 16-bit ERES | Full sample rate on all 4 ch · compliance options |
Key Features
12-bit ADC · High-resolution Acquisition
12-bit ADC with up to 16-bit ERES provides clearer waveform detail for fast edges, serial buses, power rails and mixed-signal measurements.
20 GSa/s on All Channels — AP Models
A models sample at 20 GSa/s in 2-channel mode and 10 GSa/s with 3–4 channels. AP models keep 20 GSa/s on all four channels.
Deep Memory — Up to 2 Gpts/ch
A models provide 500 Mpts/ch standard and 1 Gpts/ch optional. AP models provide 1 Gpts/ch standard, with 2 Gpts/ch optional on one channel and reduced depth as more channels are used.
Spectrum Analyzer / RTSA-DDC-SigVSA — A Models Option
Optional Spectrum Analyzer mode for SDS7000A A models adds RTSA, DDC and SigVSA analysis. Confirm model and option compatibility before quotation.
USB 2.0 and Ethernet Compliance Options
USB 2.0, Ethernet, Multi-Gigabit Ethernet and Automotive Ethernet compliance workflows require the relevant software options and test fixtures.
Eye Diagram · Jitter Decomposition
Hardware eye diagrams, TIE-based jitter decomposition and mask tests support LVDS, MIPI DPHY and other high-speed signal checks.
Serial Bus Trigger and Decode
Trigger/decode options include I²C, SPI, UART, CAN/CAN FD/CAN XL, LIN, FlexRay, I²S, MIL-STD-1553B, SENT, Manchester, ARINC429 and USB 2.0.

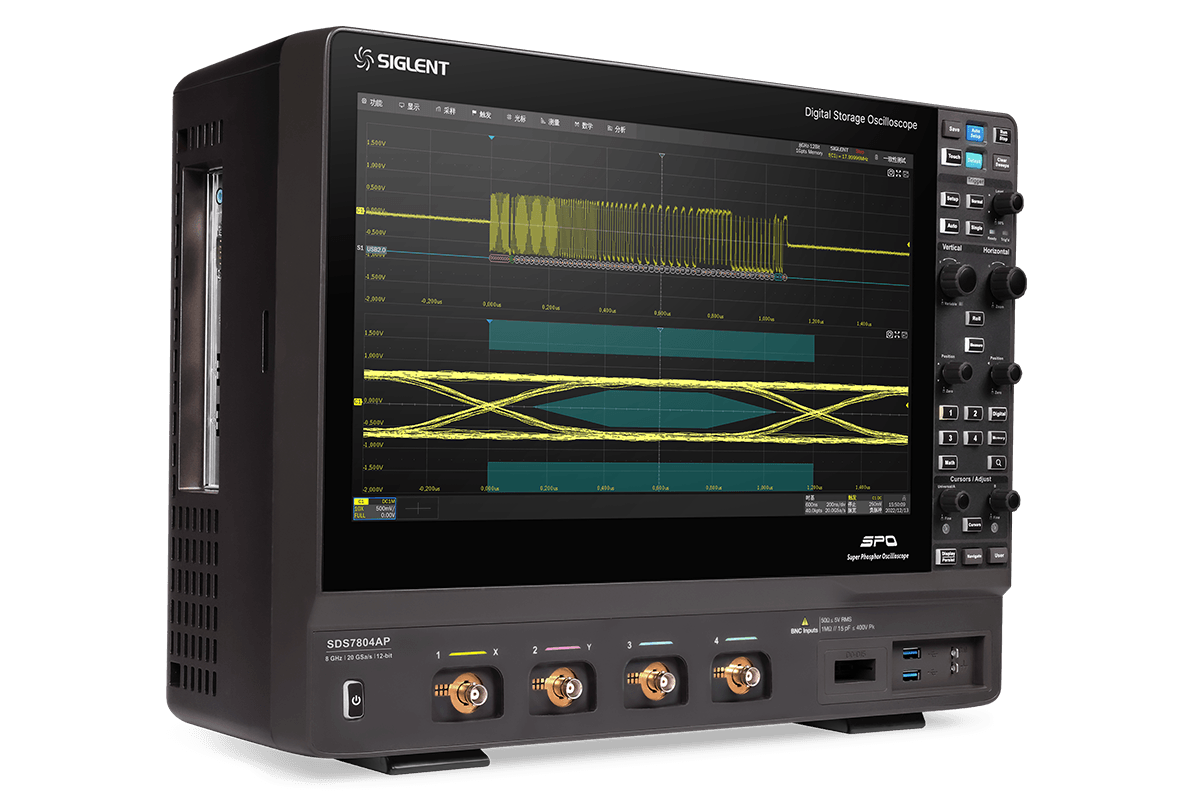

15.6-inch HD Touch Display · Bode Plot · 50 MHz AWG Option
15.6-inch 1920×1080 touch display with 256-level intensity grading. Bode plots can use the 50 MHz AWG option, isolated USB AWG module or stand-alone SDG generator.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| VERTICAL | ||
| ADC resolution | bit | 12 · up to 16 in ERES mode |
| Bandwidth | GHz | 3 / 4 / 6 / 8 (model-dependent) |
| Analog channels | — | 4 + EXT |
| Voltage ranges | V/div | 500 µV to 10 V |
| DC gain accuracy | — | ±0.5% |
| HORIZONTAL | ||
| Sample rate — A models | GSa/s | 20 (2-ch) · 10 (3 or 4 ch) |
| Sample rate — AP models | GSa/s | 20 (all 4 ch simultaneously) |
| Memory depth — A models | Mpts/ch | 500 standard · 1,000 optional (1 or 2 ch) |
| Memory depth — AP models | Gpts/ch | 1 standard · 2 optional on 1 ch · 1 on 2 ch · 500 Mpts on 3–4 ch |
| Waveform capture rate | wfm/s | 1,000,000 |
| DISPLAY | ||
| Screen | — | 15.6-inch HD capacitive multi-touch · 1920 × 1080 |
| Intensity levels | — | 256-level grading · colour temperature mode |
| TRIGGER | ||
| Trigger types | — | Edge · Slope · Pulse · Window · Runt · Interval · Dropout · Pattern · Qualified · Nth Edge · Setup/hold · Delay · Video/HDTV · Zone · Serial bus |
| SERIAL DECODE | ||
| Supported protocols | — | I²C · SPI · UART · CAN · LIN · CAN FD · CAN XL · FlexRay · I²S · MIL-STD-1553B · SENT · Manchester · ARINC429 · USB 2.0 |
| SPECTRUM ANALYSIS | ||
| Spectrum Analyzer / RTSA | — | Optional for A models · RTSA, DDC and SigVSA signal analysis |
| DDC and SigVSA | — | Digital down conversion + vector signal analysis through the optional Spectrum Analyzer mode |
| COMPLIANCE TEST | ||
| USB 2.0 | — | With FX-USB2 test fixture and USB 2.0 compliance software option |
| Ethernet | — | USB 2.0 · 100BASE-TX · 1000BASE-T · 100BASE-T1 · 1000BASE-T1 · 2.5G/5G/10GBASE-T compliance testing with required software options and test fixtures |
| MIPI / DDR compliance | — | MIPI-DPHY and DDR2/DDR3 compliance software options |
| OPTIONAL AWG | ||
| Bandwidth | MHz | 50 |
| Application | — | Bode plot loop response · variable excitation for control-loop characterisation |
| DIGITAL (MSO) | ||
| Digital channels | — | 16 at 2.5 GSa/s (MSO option) |
| CONNECTIVITY | ||

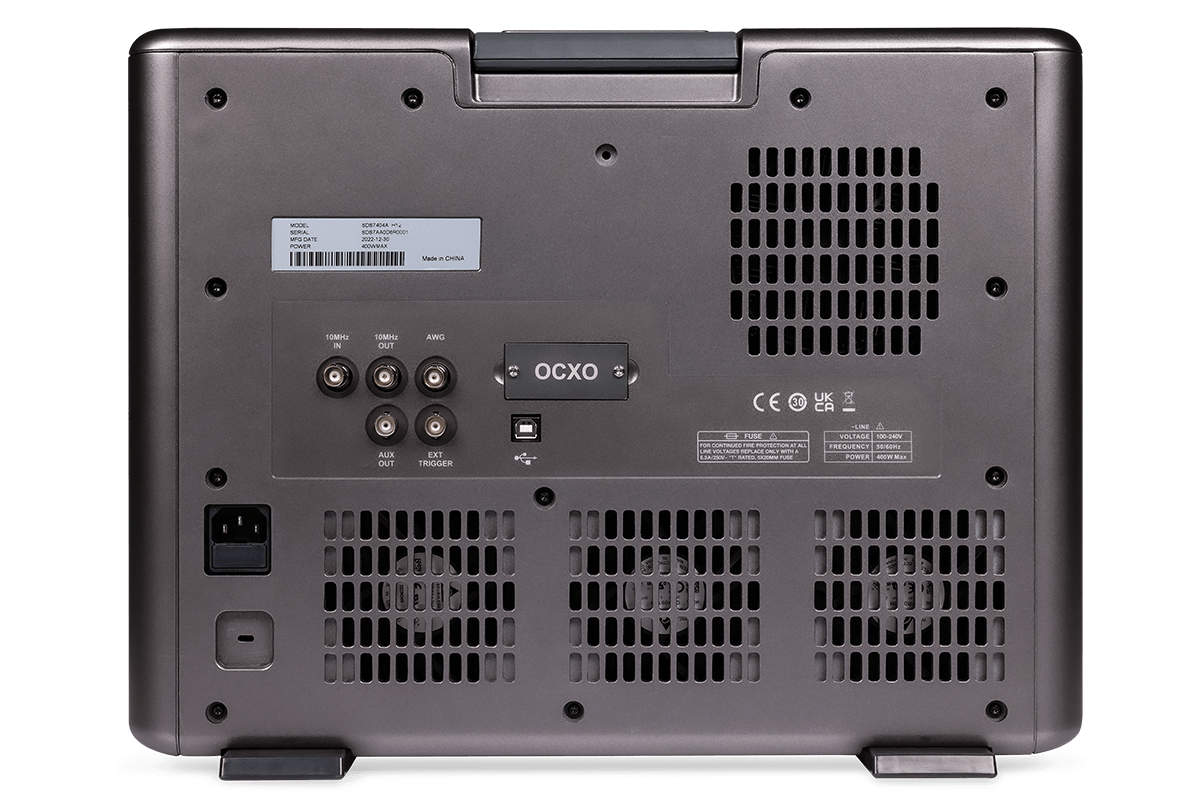

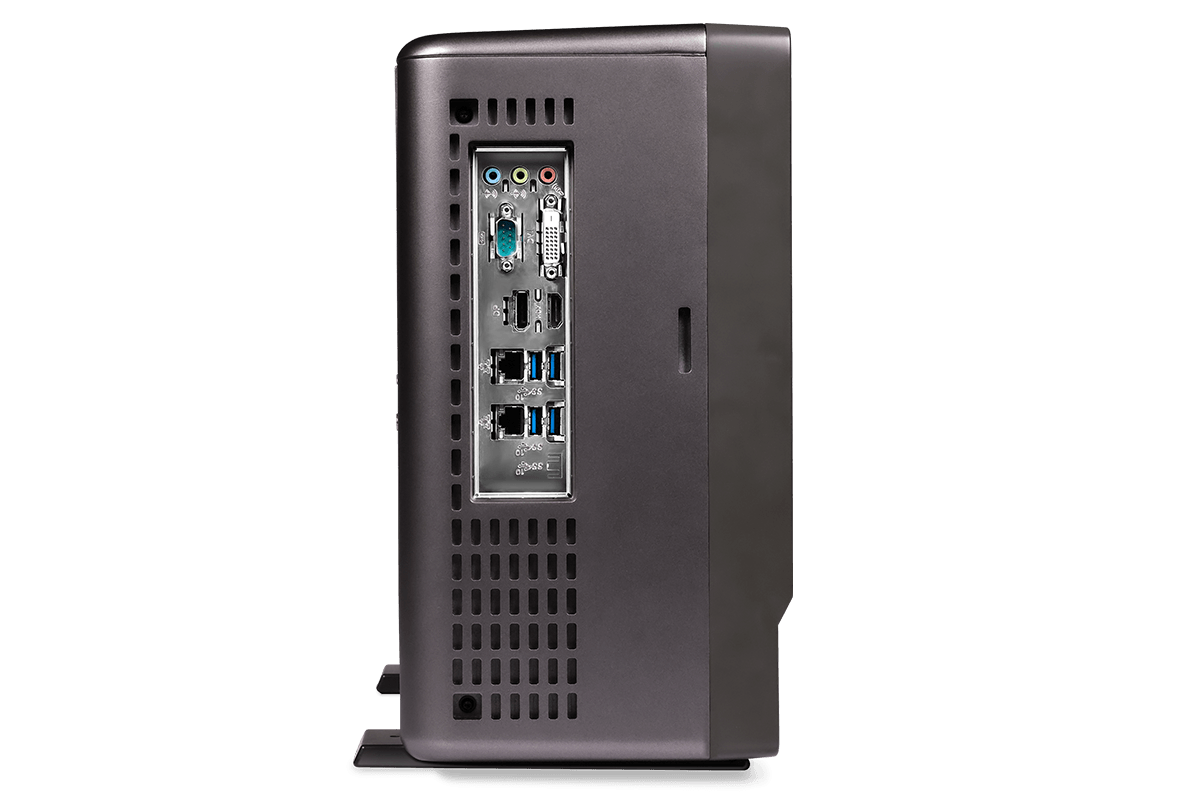

| Interfaces | — | USB Host · USB Device · dual LAN · DVI-D · DP 1.2 · HDMI 1.4 · audio · external trigger in · aux out · 10 MHz in/out · web remote · SCPI |
| POWER SUPPLY | ||
| AC input | V AC | 100–240 · 50/60 Hz |
| Warranty | — | 3 years |
Applications
Signal Integrity — USB / Ethernet / Automotive Ethernet
8 GHz bandwidth supports eye/jitter analysis and selected compliance workflows for USB 2.0, Ethernet, Automotive Ethernet, MIPI-DPHY and DDR2/DDR3 with the required options.
CAN XL / CAN FD · Automotive Ethernet
CAN XL/CAN FD decode, SENT/LIN measurement and 100BASE-T1/1000BASE-T1 automotive Ethernet compliance workflows are supported with suitable options.
Spectrum Analyzer Option · MIPI DPHY · DDR
Optional Spectrum Analyzer / RTSA mode supports RF interference investigation on suitable A-model configurations. MIPI-DPHY and DDR2/DDR3 workflows require relevant software options.
Switch Mode and GaN Measurement
12-bit acquisition, Bode plot support and power analysis options help characterise GaN/SiC converters, switching loss, efficiency and SOA.
Coherent and High-speed Measurement
20 GSa/s and up to 8 GHz bandwidth support coherent RF, laser pulse and high-speed research measurements.
SCPI Automated Compliance
SCPI over LAN supports automated test in LabVIEW, MATLAB and Python, including configured compliance workflows with the required options and fixtures.
