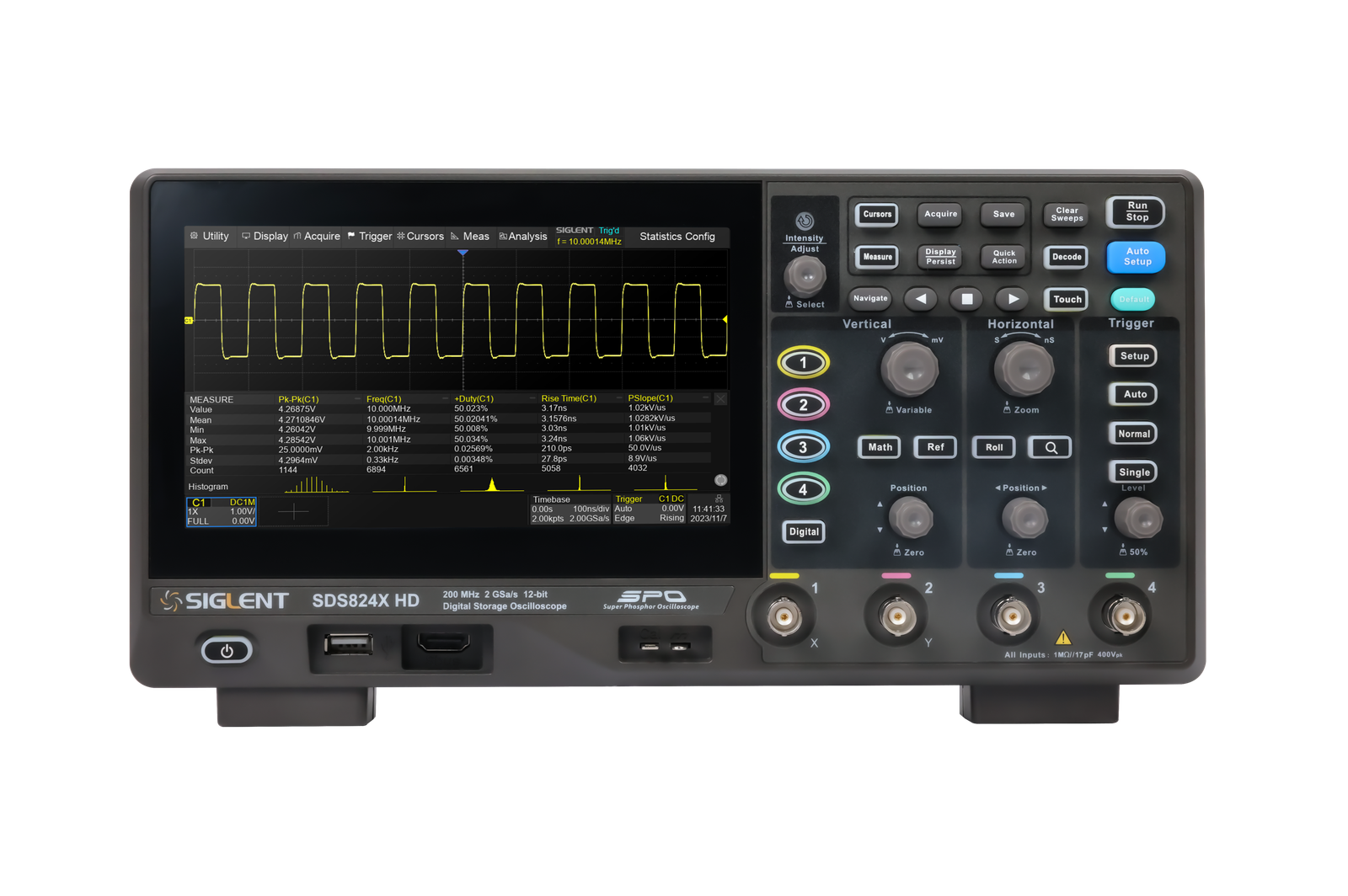

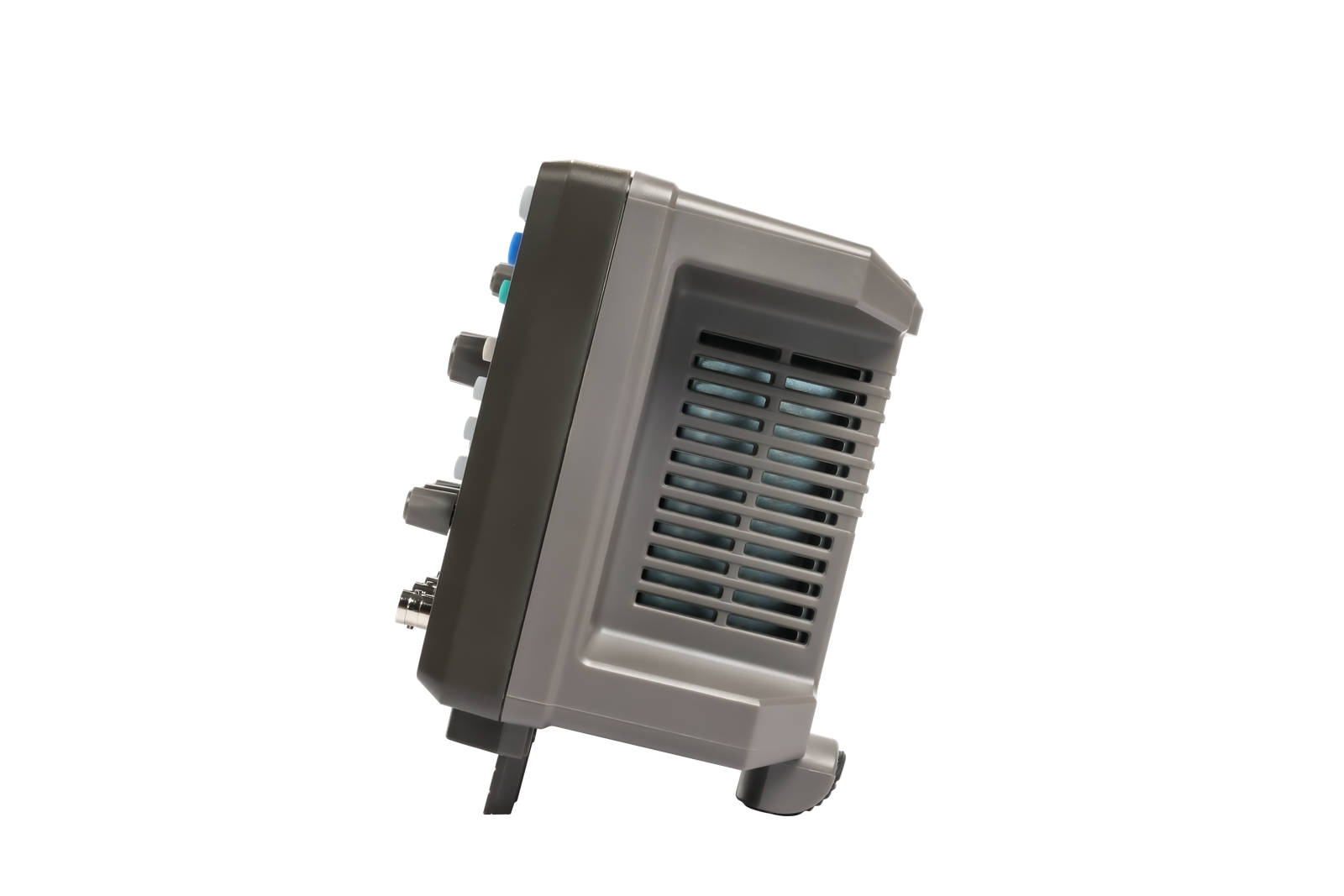

SDS800X HD — 12-bit HD Oscilloscopes, 70–200 MHz
Compact 12-bit bench oscilloscopes for embedded, education, power and general lab use. The series covers 70, 100 and 200 MHz models with 2 or 4 analog channels, optional 16-channel MSO, up to 2 GSa/s sampling, 50/100 Mpts memory, 7-inch capacitive touch display, serial decode, Bode plot and power analysis.
| Model | Bandwidth | Channels | Sample Rate | Memory Depth | Capture Rate |
|---|---|---|---|---|---|
| SDS802X HD | 70 MHz | 2 analog + 16D MSO opt. | 2 GSa/s | 50 Mpts/ch | 500,000 wfm/s sequence |
| SDS804X HD | 70 MHz | 4 analog + 16D MSO opt. | 2 GSa/s | 50 Mpts/ch | 500,000 wfm/s sequence |
| SDS812X HD | 100 MHz | 2 analog + 16D MSO opt. | 2 GSa/s | 50 Mpts/ch | 500,000 wfm/s sequence |
| SDS814X HD | 100 MHz | 4 analog + 16D MSO opt. | 2 GSa/s | 50 Mpts/ch | 500,000 wfm/s sequence |
| SDS822X HD | 200 MHz | 2 analog + 16D MSO opt. | 2 GSa/s | 100 Mpts/ch | 500,000 wfm/s sequence |
| SDS824X HD | 200 MHz | 4 analog + 16D MSO opt. | 2 GSa/s | 100 Mpts/ch | 500,000 wfm/s sequence |
Key Features
12-bit High Resolution
12-bit acquisition gives 4,096 amplitude levels for clearer ripple, sensor, power-rail and embedded signal measurements than conventional 8-bit scopes.
Up to 2 GSa/s Sampling
The platform supports up to 2 GSa/s real-time sampling across the SDS800X HD range, suitable for everyday embedded and lab debugging.
50/100 Mpts Long Memory
70 MHz and 100 MHz models provide 50 Mpts/ch, while 200 MHz models provide 100 Mpts/ch for longer captures and post-analysis.
Fast SPO Capture
SPO processing supports up to 120,000 wfm/s in normal mode and up to 500,000 wfm/s in Sequence mode for intermittent event capture.
Serial Trigger and Decode
Trigger and decode support common embedded and automotive buses including I²C, SPI, UART, CAN and LIN.

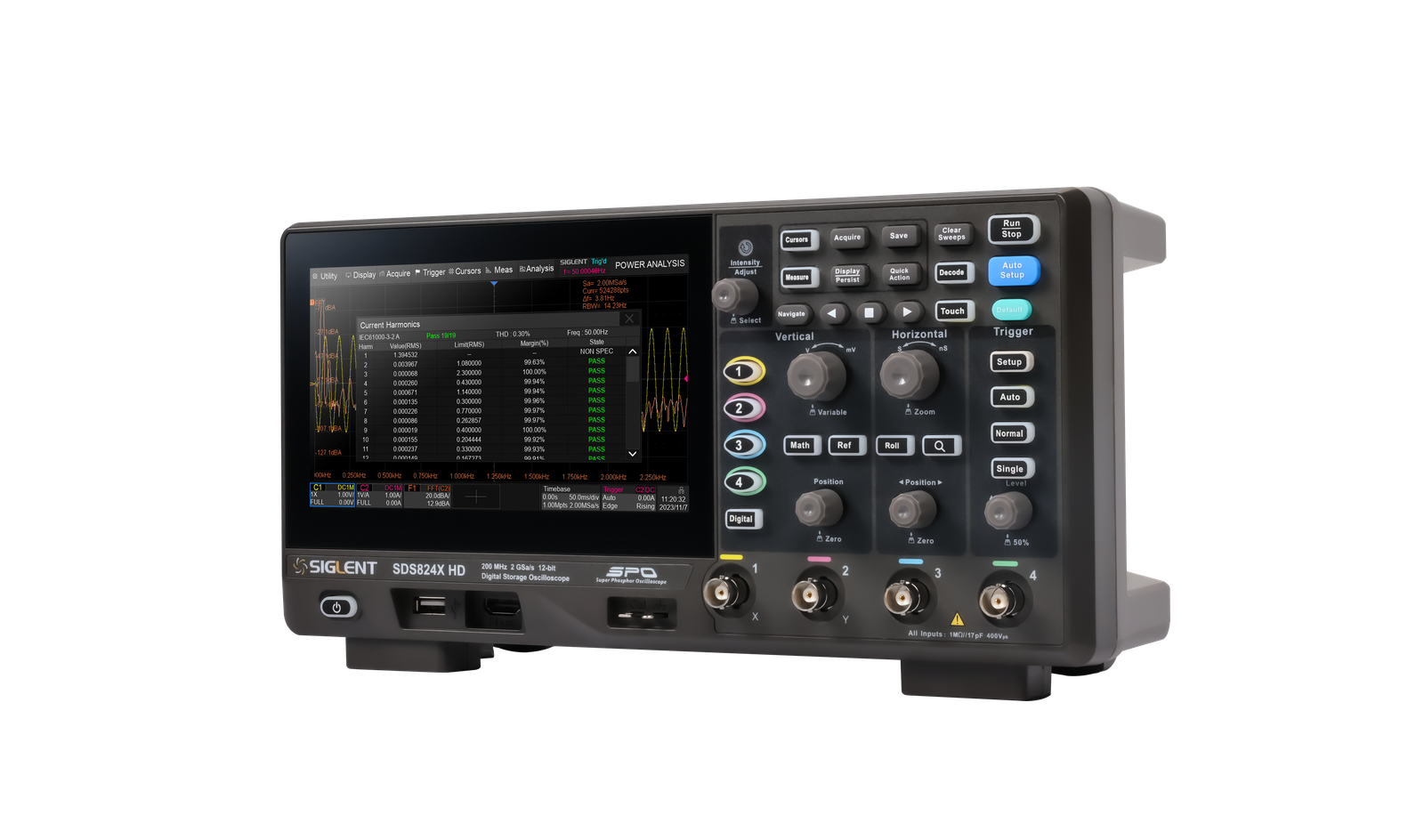

Bode Plot and Power Analysis
Bode plot, mask test, search/navigation and power analysis functions make the series useful for power and embedded validation workflows.
MSO and 25 MHz AWG Options
An optional 16-channel logic probe and optional 25 MHz waveform generator extend the scope for mixed-signal and stimulus-response tasks.

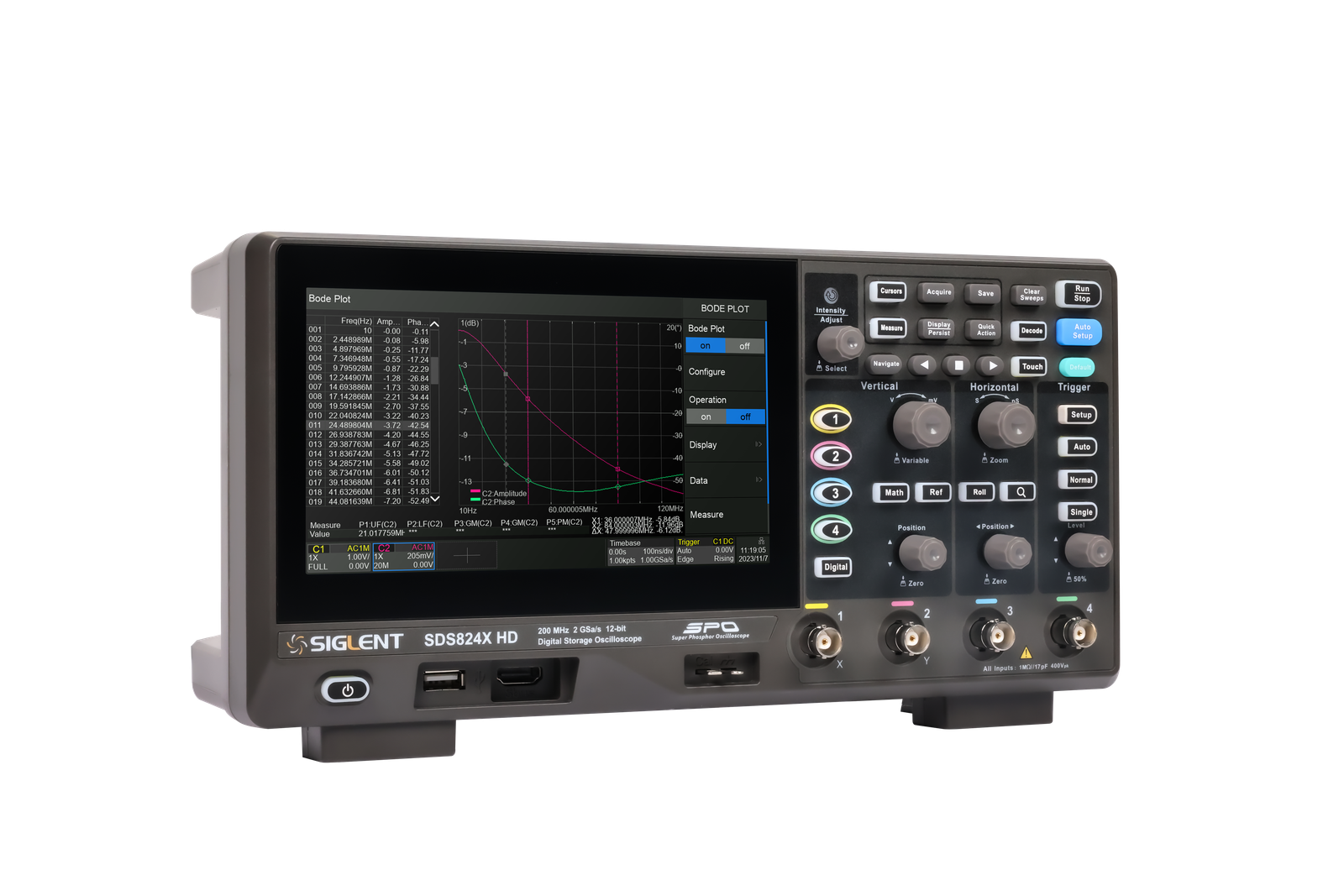

7-inch Touch Display and Remote Control
The 7-inch capacitive touch display supports 1024 × 600 resolution, LAN web control, SCPI, USB and external mouse/keyboard operation.
Specifications
| Parameter | Unit | Value / Description |
|---|---|---|
| VERTICAL | ||
| ADC resolution | bit | 12 |
| Bandwidth | MHz | 70 / 100 / 200 model-dependent |
| Analog channels | — | 2 or 4 + EXT |
| Digital channels | — | 16 with MSO option |
| Vertical scale | V/div | 500 µV/div to 10 V/div |
| Input impedance | — | 1 MΩ or 50 Ω |
| Noise floor | µVrms | 70 typical |
| HORIZONTAL | ||
| Sample rate | GSa/s | Up to 2 |
| Memory depth | Mpts/ch | 50 for 70/100 MHz models · 100 for 200 MHz models |
| Capture rate | wfm/s | 120,000 normal mode · 500,000 Sequence mode |
| Sequence / History | frames | Up to 80,000 segments / frames |
| TRIGGER AND DECODE | ||
| Trigger types | — | Edge · Slope · Pulse width · Window · Runt · Interval · Dropout · Pattern · Video · Qualified · Nth edge · Delay · Setup/Hold · Serial |
| Serial decode | — | I²C · SPI · UART · CAN · LIN |
| ANALYSIS | ||
| Measurements | — | 50+ parameters with statistics, histogram, track, trend and gating |
| Math / FFT | — | 4 math traces · FFT up to 2 Mpts · formula editor |
| Other tools | — | Search · Navigate · Counter · Mask Test · Bode Plot · Power Analysis |
| Waveform generator | MHz | 25 optional |
| DISPLAY | ||
| Screen | — | 7-inch capacitive multi-touch · 1024 × 600 |
| Display modes | — | 256-level intensity grading · colour temperature |

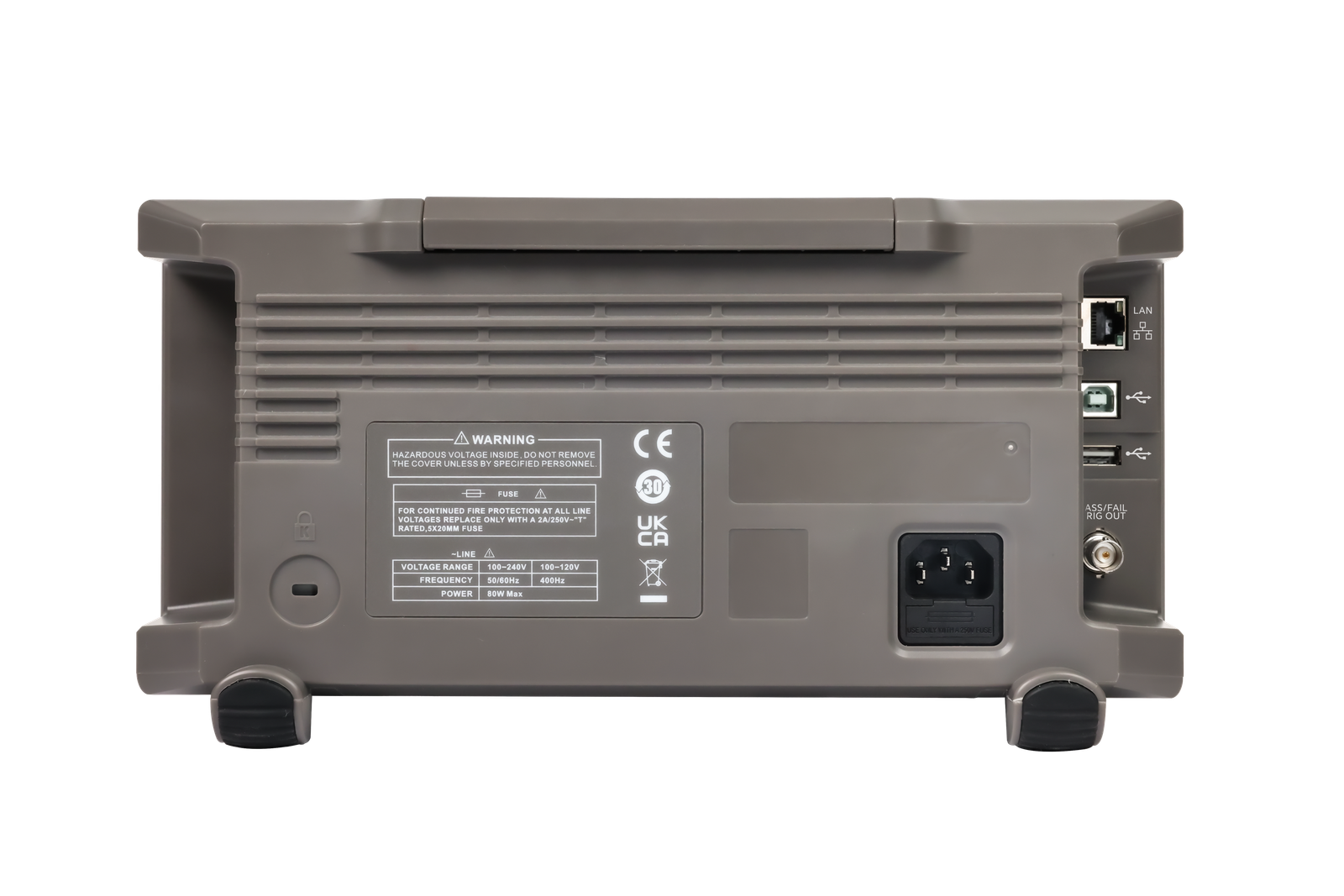

| CONNECTIVITY | ||
| Interfaces | — | USB Host · USB Device/USBTMC · LAN/VXI-11/Telnet/Socket · Pass/Fail · Trigger Out |
| Remote control | — | Built-in web server · SCPI · external mouse and keyboard support |
| Warranty | — | 3 years |
Applications
Embedded System Bring-up
Serial decode, search/navigation and long memory help debug I²C, SPI, UART, CAN and LIN buses alongside analog rails.
Ripple, Loop and Power Checks
12-bit resolution, Bode plot and power analysis support converter ripple, loop response and basic power-stage validation.
CAN/LIN ECU Debug
CAN and LIN decode with timestamped event tables support ECU, body electronics and sensor-interface troubleshooting.
University and Training Labs
Affordable 12-bit models with touch UI, serial decode and Bode plot fit embedded, power electronics and measurement labs.
Automated Waveform QA
Mask test, pass/fail output and SCPI over LAN support repeatable board-level waveform checks.
Bench Debug and Validation
Compact 70–200 MHz models cover routine analog, digital, power and mixed-signal debugging.
